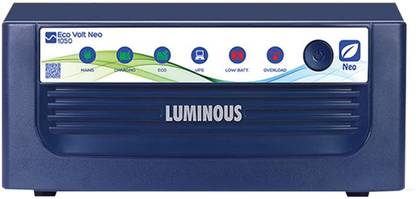

LUMINOUS 900 VA with 24 Months Warranty Pure Sine Wave Inverter (Eco Volt Neo 1050)

Name: LUMINOUS 900 VA with 24 Months Warranty Pure Sine Wave Inverter
Brand: LUMINOUS
SKU: INVHGPUHGG3DXHMS

Price: Not Available

Currently Unavailable

24 Months (2 Years)Know More

Description

Intelligent Square Wave Technology: The inverter produces a square wave output, suitable for running appliances like lights, fans, and LED TVs during power cuts. High Load Capacity: It has a capacity of 900 VA and a maximum rated power of 756 watts, capable of supporting a variety of appliances in small homes, offices, or shops. Wide Input Voltage Range: The unit is designed for areas with low input voltage, as battery charging begins even at input voltages as low as 90V AC in Eco Mode. Advanced Battery Management: Adaptive Battery Charging Control (ABCC): This feature ensures longer battery life and better backup performance. Battery Type Selection: A switch allows customization of charging profiles for different battery types including Tubular, Flat Plate, SMF, VRLA, and Local batteries (80 Ah - 250 Ah capacity). Intelligent Thermal Management System: The system keeps the unit cool and automatically shuts it down during over-temperature conditions. User-Friendly Interface: Features user-friendly LED indicators for monitoring the performance of the inverter and battery system. It also includes audio alarms for switch-over, low battery, and overload conditions. Safety Protections: Equipped with essential protections against overcharging, overload, short circuits, and deep battery discharge with an auto-reset option. Dual Operating Modes: UPS Mode: Keeps the output voltage in a narrow range (180V to 260V) to protect sensitive appliances like computers. Eco Mode: Extends the voltage operating range to reduce battery usage in areas with high voltage fluctuations.

Specifications

Output Features

Efficiency	70 %
Output Voltage	Standard Output: Around 220-230V AC (standard Indian household voltage)., UPS Mode: 180V to 260V (for sensitive appliances like computers)., Eco Mode: Extended range, also around 180V-260V (to save battery).
Output Frequency	50hz
Overload	An inverter overload occurs when the total power drawn by the connected appliances exceeds the inverter's maximum rated capacity of 756 watts (or 900 VA for the Luminous Eco Watt Neo 1050).
AC Output Types	Voltage: In inverter (UPS) mode, the output voltage is maintained within a range of approximately 200V to 230V AC.
Output Power	756 W
Change Over Time	15 ms
Change Over Voltage	Eco Mode (Wide Voltage Range): In this mode, the inverter operates within an extended input voltage range of 100V to 290V AC. The changeover to battery mode (and back to mains) happens at these lower and upper limits to minimize battery usage in areas with high voltage fluctuations. UPS Mode (Narrow Voltage Range): To protect sensitive electronic appliances like computers, this mode maintains a stricter input voltage range of 180V to 260V AC. The changeover to battery power is triggered if the voltage drops below 180V or exceeds 260V, ensuring a consistent and safe power supply to connected devices.
VA Rating	900 VA
Overload Rating	Maximum Continuous Load: The maximum consistent load you can safely apply is 756 W. Overload Mechanism: If the connected load exceeds this wattage, the inverter's advanced microprocessor immediately detects the situation. Immediate Action: The inverter will sound an overload alarm (beeping) and automatically shut down the power output to prevent internal damage or short circuits. No Defined Surge Rating: Unlike some industrial inverters with a specified surge capacity (e.g., 2x the continuous load for a few seconds), the Eco Watt Neo 1050 is designed to cut off immediately when overloaded.
Other Output Features	Overload Protection: It features an automatic overload detection system. If the total load exceeds the 756 W limit, it sounds an alarm and shuts down the power output, with an auto-reset function once the load is reduced. Short-Circuit Protection: The unit provides ultra-fast short-circuit protection to immediately cut power in case of a short, safeguarding the connected appliances and the inverter circuitry. Over-temperature Protection: An intelligent thermal management system is built in to monitor internal temperature and shut down the system during overheating conditions, preventing heat-related damage. Deep Discharge Protection: This feature prevents the connected battery from deep discharging, which is harmful to battery life. It cuts off the output when the battery voltage drops below a safe level. Reverse Polarity Protection: It includes protection against incorrect battery terminal connections.

Environmental Features

Noise Level	The Luminous Eco Watt Neo 1050 inverter is designed for low-noise operation, with a typical noise level rating of approximately ≤ 50 dB (at 1 meter distance).
Total Harmonic Distortion	The Luminous Eco Watt Neo 1050 inverter produces an output with a high Total Harmonic Distortion (THD), typical of a square wave output, generally around 30-45% depending on the load.
Other Environmental Features	Eco friendly

Warranty

Warranty Summary	24 Months (2 Years)
Service Type	In case of any defect or technical issue with the product, the customer needs to register a service call with Luminous customer care. Toll-Free Number: 1800 103 3039 or 99999 33039. Email ID: care@luminousindia.com. WhatsApp No: +91 7042-833-939. A company engineer typically visits the site within 24-48 hours to provide a resolution
Covered in Warranty	TECHNICAL ISSUE
Not Covered in Warranty	Physical Damage
Domestic Warranty	24 Months

Input Features

Input Voltage	100 V AC or 110 V AC,
Input Frequency	50 hz
Other Input Features	Automatic Switchover: The switchover from inverter to mains mode is automatic and fast (less than 15 milliseconds in UPS mode), ensuring a seamless transition without interrupting power to connected appliances. Low Voltage Fast Charging (LVFC): The inverter features LVFC technology, which allows it to start and maintain a high battery charging current even when the input voltage is as low as 90V to 100V AC, which helps quickly recharge the battery once stable power is available.

Battery Features

Battery Type

Tubular Batteries: These are ideal for areas with frequent and long power cuts and are known for their durability and low maintenance (tall or short tubular designs can be used). Flat Plate Batteries: Common in automotive and standard inverter applications, these are also fully supported. VRLA (Valve Regulated Lead-Acid) / SMF (Sealed Maintenance Free) Batteries: These sealed batteries offer maintenance-free operation and are suitable for use with the Eco Watt Neo 1050. Local Batteries: The inverter can also work with generic or locally assembled lead-acid batteries, provided they are 12V and within the recommended capacity range.

Recharge Time

A fully discharged 150 Ah battery typically takes approximately 10 to 15 hours to fully recharge with a standard charger, but the Neo 1050's higher current can shorten this to a minimum of 5-6 hours. For a 120 Ah battery, the time would be shorter, while a 250 Ah battery would take longer.

In The Box

Sales Package

1 inverter

General

Brand	LUMINOUS
Model Number	Eco Volt Neo 1050
Battery Included	No
Back Up Time	6 hrs
Load Options	Typical Backup Times (with Luminous 150Ah Battery) Full Load (756W): ~2.6 hours (e.g., 2 Fans, 2 Tube lights, 2 LEDs, 1 TV, 1 Laptop). Half Load (378W): ~5.2 hours (e.g., 2 Fans, 2 Tube lights, 2 LEDs, 1 TV, 1 Laptop). Example Loads & Backup (with 135Ah Battery) 4 Fans + 4 Tube lights + 1 TV + 3 CFLs: 3 to 3.5 hours. 2 Tube lights + 4 Fans + 1 PC + 3 CFLs: 3 to 3.5 hours.
Type	Pure Sine Wave Inverter
Mode Type	UPS Mode: Keeps output voltage stable (180-260V) for sensitive electronics like computers., ECO Mode: Operates in a wider voltage band to reduce energy consumption and extend battery life.
Technology Used	Square Wave Technology
Solar Power Compatible	No
Switch Type	Mode Selection: The same button is used to switch between UPS Mode (for sensitive appliances like computers, with a narrow voltage range) and Eco Mode (for a wider voltage range, reducing battery usage) by pressing and holding it. The selection is indicated by user-friendly LED lights on the front panel

Dimensions

Width	26.1 cm
Height	12.4 cm
Depth	27.5 cm
Weight	9.3 kg

Additional Features

Certification

ISI Mark (BIS certified): The product is certified under the Bureau of Indian Standards (BIS) scheme, which is essential for inverters sold in India. This confirms it meets Indian safety and quality standards. ISO Certification: Luminous, as a manufacturer, operates under ISO certified processes, which indicates adherence to international quality management and standardization practices.

Key Features

Intelligent Square Wave Technology: The inverter produces a square wave output, suitable for running appliances like lights, fans, and LED TVs during power cuts. High Load Capacity: It has a capacity of 900 VA and a maximum rated power of 756 watts, capable of supporting a variety of appliances in small homes, offices, or shops. Wide Input Voltage Range: The unit is designed for areas with low input voltage, as battery charging begins even at input voltages as low as 90V AC in Eco Mode.

Convenience Features

Display Type	LED
Display Indicator Functions	Mains On: This LED lights up (usually green) when the inverter is connected to the main AC power grid and the power supply is present., Charging: This LED (often blinking or solid green) indicates that the battery is currently being charged by the mains power., UPS On: This LED indicates that the inverter is actively providing power to connected appliances from the battery backup due to a mains power failure., ECO Mode / UPS Mode: Dedicated LEDs indicate which operating mode is currently selected., Low Battery: This LED (usually red) illuminates to signal that the battery charge is low and needs recharging. It is often accompanied by an audible alarm., Overload: This LED (usually red) lights up when the total load connected to the inverter exceeds its maximum capacity of 756 W. This is also accompanied by an audible alarm, and the inverter will shut down to prevent damage
Audible Indicator Functions	Switch Over Alarm: A brief sound may indicate the transfer between mains power and battery power., Overload Alarm: A more urgent or continuous sound signals an overload condition, prompting the user to disconnect some appliances immediately
