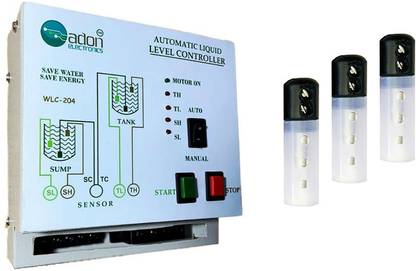

AdonElectronics Fully Automatic Water Level Controller for - Submersible Pump Starter (Load 3hp) Wired Sensor Security System

:: WORKING :: This Fully automatic water level controller is used to control Submersible Pump-Motor (GREEN Start and RED Stop Button Type Starter Panel with Single/Multi Capacitors Panel) to switch on and off the motor according to level of water in overhead tank. || || It has 3 mode of operation Auto, Manual and Semi-auto || ||-In Auto Mode: Auto ON occurs when the tank water level is low (below ‘TL’ sensor level) and Auto OFF when tank is full (at ‘TH’ sensor level). ||-In Manual Mode: This mode is used to operate motor manually by START & STOP button. ||-In Semi Mode: In this mode the motor start by the Start button and turned it off automatically. ||Has LED indications for Motor On, also has high- and low-level indication to know the level of water in the tank. :: FEATURES :: 1. No current/Voltage is passed through Water, therefore No Electrolysis Salt Deposition. || 2. No man power required to operate as fully automatic.|| 3. Avoid overflow & dry running longer life no mechanical system.|| 4. Compact Steel (with powder coated) housing.|| 5. Control overhead tank.|| 6. Easy to install. Advanced embedded technology.|| :: SPECIFICATIONS :: 1.Operating voltage 220-250 volts ac. Frequency 50 hz.|| 2. Controller Unit 25 Amp Load Capacity & Up to 3 Hp Motor|| :: PACKAGE CONTAINS :: 1. Controller Unit: Fully automatic water level controller with indicator for Submersible Pump for Overhead Tank Only.|| 2. Sensor: Three Stainless Steel Sensors.|| 3. Installation Boucher/Warranty Card.|| Warranty: 1-year warranty. Warranty type: replace/service. ::: Thanks for to have healthy buying response :::
