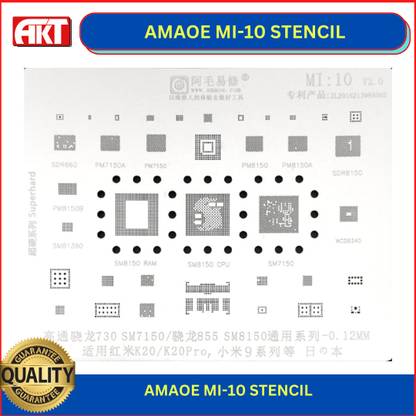

AKT AMAOE MI-10 STENCIL For Redmi SM7150 CPU, SM8150 CPU, K20, K20PRO, SDR660, PM7150A, PM7150, PM8150, PM8150A, SDR8150, PM8150B, SM8150 RAM, WCD9340 Tin Stencil  (Pack of 1, SQUARE)

Stencil Purpose: Stencils like the MI-10 are used for precise application of solder paste to solder pads on a PCB. This solder paste serves as a temporary adhesive that holds surface-mount components (SMDs) in place during the soldering process. Reballing: Stencils are also commonly used in reballing processes, which involve removing and then re-soldering a component, such as a BGA (Ball Grid Array) chip. The stencil helps apply solder balls to the component's pads with precision. Compatible Devices: The MI-10 stencil is likely designed for use with specific Xiaomi (Redmi) models. Each stencil is typically designed to match the component layout of a particular device or series. Aperture Design: The stencil features a pattern of tiny apertures (holes) that align with the solder pads on the PCB or component. When solder paste is applied over the stencil and pushed through these apertures, it deposits a controlled amount of solder onto the pads. Stencil Material: Stencils are commonly made from stainless steel or other durable materials to withstand repeated use and exposure to high-temperature soldering processes. SUPPORTED MODEL:- SM7150 CPU SM8150 CPU K20 K20PRO SDR660 PM7150A PM7150 PM8150 PM8150A SDR8150 PM8150 BSM8150 RAM WCD9340.
