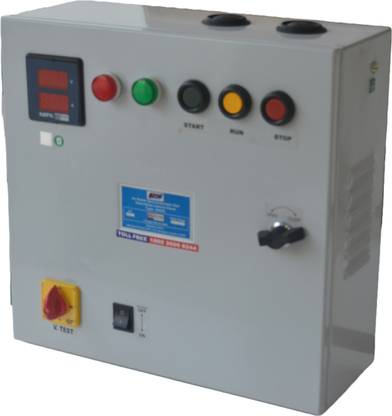

ARC ARC BADC 40 HP Star Delta Control Panel Water Pump Starter

Price: Not Available

Currently Unavailable

Warranty

1 Year Warranty Against Manufacturing Defects

Description

ARC ELECTRICALS BADC MOTOR Control Panel is provided with CNC fabricated, box mounted with Digital Volt & Ampere with Overload protection with timer and fitted with preventer which is provide auto start when current will be fluctuated.

Specifications

In The Box

Sales Package

1 Unit

General

Brand	ARC
Model Number	ARC BADC 40 HP Star Delta Control Panel
Type	Water Pump Starter
Frequency	50
Phase	Three Phase
IP Rating	54
Power Requirement	415 VOLT
Rated Current	100 A
Maximum Operating Temperature	75 degC
Minimum Operating Temperature	3 degC
Motor Power	40 hp
Power Consumption	29840 W
Material	Powder Coted CRC Box
Other Features	Three Phase Star Delta Motor Control Panel Voltage & Current Based protection for All Fault Digital Volt & Amp. Meter Suitable for low voltage application Protection Available : Voltage Single Phasing Current Single Phasing, Voltage Unbalance, Current Unbalance, Phase Reversel Equipped with highly reliable and accurate overload Relay for motor protection Dust proof, powder coated sheet steel enclosure Auto/Manual Mode Available Easy Installation with Factory Fitted Complete wiring & Terminal Block Need To Connect Only Supply & Motor Wires

Warranty

Service Type	Service/ Replacement
Covered in Warranty	1 Year Warranty Against Manufacturing Defects
Not Covered in Warranty	Warranty Does Not Cover if Product is damaged due to Improper handling or Improper Installation by Customer, Terminal burning, any short circuit/overload burning.
Warranty Summary	1 Year Warranty Against Manufacturing Defects
