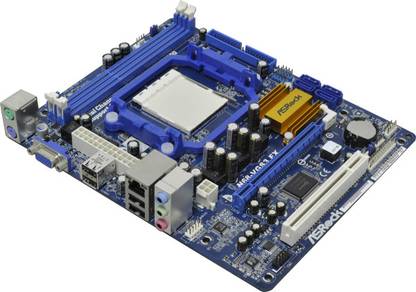

    ASRock N68-VGS3 FX AM3+Socket Micro-ATX GeForce 7025 Chipset DDR3 Motherboard

    ASRock N68-VGS3 FX AM3+Socket Micro-ATX GeForce 7025 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    3 Years ASRock India Warranty
    Highlights
    • GeForce 7025
    • Data Rate DDR3
    • Maximum RAM Capacity 8
    • Form Factor: Micro-ATX
    Specifications
    In The Box
    Sales Package
    • Quick Installation Guide, Support CD, I/O Shield and 2 x SATA Data Cables
    General
    Brand
    • ASRock
    Model ID
    • N68-VGS3 FX
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • AM3+
    Compatible Processors
    • AMD Sempron, AMD FX, AMD Athlon II, AMD Phenom Quad Core, Socket AM2: AMD Athlon 64 X2, AMD Athlon 64, AMD Athlon II X3, AMD Athlon 64 X2, Socket AM3: AMD Phenom II X6, AMD Phenom II X4, AMD Phenom II X3, AMD Phenom II X2, AMD Athlon II X4, AMD Athlon II X2, Socket AM3+: AMD Opteron, AMD Sempron, Socket AM2+: AMD Phenom II X3, AMD Phenom Triple Core, AMD Athlon X2, AMD Athlon X2, AMD Sempron Dual Core
    FSB
    • 1000 MHz
    Chipset
    • GeForce 7025, nForce 630a
    Chipset Manufacturer
    • NVIDIA
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 8 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 800 MHz, 1333 MHz, 1600 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Storage
    RAID Configurations
    • 0, 1, 0+1, 5, JBOD
    Graphics
    Integrated Graphics card
    • NVIDIA GeForce 7025
    Audio
    Audio Codec
    • VIA VT1705
    Audio Channels
    • 5.1
    Audio Features
    • High Definition Audio
    Connectivity
    Ethernet Controller
    • PHY RTL8211CL
    Ethernet Features
    • 10/100/1000 Mb/s
    Expansion Slots
    PCI Slots
    • 1
    PCIe x16 Slots, Generation
    • 1
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 2
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 4 pin 12V Power Connector, 1 x ATA133 IDE Connector (supports 2 x IDE Devices)
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    Overclocking
    • Supports Untied Overclocking Technology
    Hardware Monitoring
    • CPU Temperature Sensing, Chassis Temperature Sensing, CPU Fan Tachometer, Chassis Fan Tachometer, CPU Quiet Fan, Voltage Monitoring: +12V, +5V, +3.3V, Vcore
    Support CDs
    • Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial, Creative Sound Blaster X-Fi MB - Trial, ASRock MAGIX Multimedia Suite - OEM)
    OS Support
    • Windows Vista, Windows 7, Windows XP
    BIOS
    • 8 Mbit AMI Legal BIOS, Supports: Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU -VCCM Voltage Multi-adjustment
    Features
    • Instant Boot, Instant Flash, OC Tuner
    Advanced Technologies
    • Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies, Supports AMD Cool 'n' Quiet Technology, Supports Hyper-transport Technology
    Advanced Features
    • AM3+ 8-Core Processor Support, ASRock App Charger, OC DNA
    Limitations
    • Due to the Operating System Limitation, the Actual Memory Size may be Less than 4GB for the Reservation for System Usage Under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such Limitation.
    Dimensions
    Dimensions
    • 177.8 x 215.9 mm
    Warranty
    Domestic Term
    • 3 Years ASRock India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Years ASRock India Warranty
    Covered in Warranty
    • Manufacturing Defects
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
    Ratings & Reviews
    4.1
    ★
    10 Ratings &
    2 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 6
    • 2
    • 0
    • 1
    • 1
    1

    Finally I have to rewrite my review... :P

    Initially I thought the product was having some kinda problem. But laer I found myself wrong, that was some other problem. Trust me this motherboard looks a little cheap, but works just fine. Btw what else can you expect in Rs 2423 ?
    My gaming rig is
    AMD FX 6300 3.5 Ghz(Stock speed) Overclockable to 5Ghz...
    Corsair Vengeance 4 GB RAM
    ASRock N68-VGS3 FX Motherboard (this one ofcourse)
    Nvidia GTX 650 Ti AMP Edition 2 GB
    Cooler Master cabinet (bought that from a local shop)

    Guys this motherboa...
