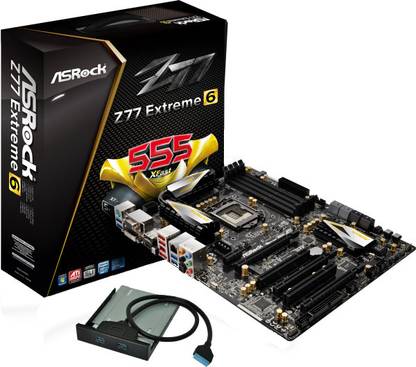

ASRock Z77 Extreme 6 LGA 1155Socket ATX Intel Z77 Chipset DDR3 Motherboard

ASRock Z77 Extreme 6 LGA 1155Socket ATX Intel Z77 Chipset DDR3 Motherboard

Price: Not Available
Currently Unavailable
Warranty
3 Years Domestic Warranty
Highlights
  • Intel Z77
  • Data Rate DDR3
  • Maximum RAM Capacity 32
  • Form Factor: ATX
Specifications
In The Box
Sales Package
  • 1 x ASRock SLI_Bridge_2S Card, Quick Installation Guide, Support CD, I/O Shield, 4 x SATA Data Cables, 1 x Front USB 3.0 Panel, 4 x HDD Screws, 6 x Chassis Screws, 1 x Rear USB 3.0 Bracket
General
Brand
  • ASRock
Model ID
  • Z77 Extreme 6
Essentials
Form Factor
  • ATX
Socket Type
  • LGA 1155
Compatible Processors
  • Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor
Chipset
  • Intel Z77
Chipset Manufacturer
  • Intel
Memory
Number of Memory Slots
  • 4 Slots
Memory Configuration
  • 32 DDR3 Dual Channel DIMM
Memory Frequency
  • 1066 MHz, 2133 (O.C) MHz, 1866 (O.C) MHz, 2400 (O.C) MHz, 2800+ (O.C) MHz, 1600 MHz, 1333 MHz
ECC Support
  • Non-ECC
Buffered Memory
  • Unbuffered
Storage
SATA 3 Gb/s
  • Intel Z77 Chipset
SATA 6 Gb/s
  • Intel Z77 Chipset
RAID Controller
  • Intel Z77 Chipset
RAID Configurations
  • 0, 1, 5, 10
Graphics
Integrated Graphics card
  • Intel HD Graphics 2500, Intel HD Graphics 4000
External Graphics Card Support
  • Yes
Multi GPU Support
  • Yes, AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX, NVIDIA Quad SLI, SLI
Audio
Audio Codec
  • Realtek ALC898
Audio Channels
  • 7.1
Audio Features
  • High Definition Audio with Content Protection, Premium Blu-ray Audio Support, THX TruStudio
Connectivity
Ethernet Controller
  • Broadcom BCM57781
Ethernet Features
  • 10/100/1000 Mbps, Supports Wake-On-LAN, Supports PXE, Supports Energy Efficient Ethernet 802.3az
Expansion Slots
PCI Slots
  • 2
PCIe x1 Slots, Generation
  • 1, 2
PCIe x16 Slots, Generation
  • 2, 1
Mini PCIe Slots
  • 1
Internal I/o Headers
SATA 3 Gb/s Headers
  • 4
SATA 6 Gb/s Headers
  • 4
USB 2.0 Headers
  • 3
USB 3.0 Headers
  • 1
ATX Power Connectors
  • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers
  • 2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers
  • 1
Other Connectors
  • 1 x Reset Switch with LED, 1 x Power LED Header, 1 x IEEE 1394 Header, 1 x DisplayPort, SLI/XFire power connector, 1 x CIR Header, 1 x HDMI_SPDIF Header, 1 x Power Switch with LED, 1 x Clear CMOS Switch with LED, 1 x Floppy Connector, 1 x IR Header, 1 x Dr. Debug with LED, 1 x Power Fan Connector
VGA/Dsub Connectors
  • 1
Back Panel Ports
USB 3.0 Ports, Controller
  • Etron EJ168A, 2, Intel H77 Chipset
eSATA Ports, Controller
  • 1
HDMI Ports
  • 1
IEEE 1394a Ports
  • 1
DVI Ports
  • 1
VGA/D Sub Ports
  • 1
Audio I/O Channels
  • 6
Optical S/PDIF Ports and S/PDIF Out ports
  • 1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks
  • 1
PS/2
  • 1
General Features
Hardware Monitoring
  • CPU Temperature Sensing, Chassis Temperature Sensing, CPU/ Chassis/ Power Fan Tachometer, CPU/ Chassis Quiet Fan (Allow Chassis Fan Speed Auto-adjust by CPU Temperature), CPU/ Chassis Fan Multi-speed Control, Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Support CDs
  • Drivers, Utilities, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite, OEM
Bundled Software
  • AntiVirus Software (Trial Version)
OS Support
  • Windows XP and Above
BIOS
  • 64 MB AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Features
  • Combo Cooler Option (C.C.O.), Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.), Good Night LED
Advanced Technologies
  • Intel Turbo Boost 2.0 Technology, Intel K-Series Unlocked CPU, Hyper-Threading Technology, Intel Rapid Start Technology with Intel Ivy Bridge CPU, Smart Connect Technology with Intel Ivy Bridge CPU
Advanced Features
  • ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock SmartView, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock Dehumidifier Function, ASRock No-K OC Technology, Lucid Virtu Universal MVP
Dimensions
Dimensions
  • 244 x 305 mm
Warranty
Domestic Term
  • 3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary
  • 3 Years Domestic Warranty
Covered in Warranty
  • Manufacturing Defects are Covered
Not Covered in Warranty
  • Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type
  • Carry In
Ratings & Reviews
4.3
32 Ratings &
13 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 22
  • 6
  • 0
  • 1
  • 3
5

Gr8 Mobo at this price

This is a winner by ASRock in this price bracket. Performance really good. If you are planning to build a SLI/Crossfire build and have budget for mobo less than 15K go for this. I am using this for one of my builds. My other build is with Asus Maximus V Gene... and nope Extreme 6 cant beat Maximus V Gene by any chance.

But for this price, Extreme 6 is an excellent buy.
READ MORE

Mandar Palshikar

Aug, 2012

3
0
Report Abuse
5

Underpriced, Overpowered. What's not to love?

There's a reason ASRock is in the top 3 best motherboard makers on the planet, and ranked second last year. They deliver powerful mobo's much cheaper then their competitors. This is BETTER then the P8Z77 by Asus, for less money, with more features. IT'll forward-support the Ivy Architecture. It'll do it all for Rs.6000 less. What's NOT to love?
READ MORE

Akantuk Sharma

Sep, 2012

3
0
Report Abuse
5

amazing and powerfull mobo...!!

its an cool designed motherboard and its has powerfull functions like xfast usb, xfast ram, xfast lan etc
which gives you the unleashed fast pc experience...!!!
specially it has nvidia sli and crossfire support...!!
i am using with I5-3570k and gpu is nvidia gtx-680 4gb
still no problem...!!
overall powerfull and amazing motherboard...!!
if your building for gaming rig go for this...!!
READ MORE

Kshitij Patil

Certified Buyer, Pune

Dec, 2013

0
0
Report Abuse
5

Damn good board for the price.

The mother board is damn good. All the good features you can get for the price.
As a positive it has floppy controller(needed it for my piano), old PCI slots(old audigy card went here) and enthusiast power controller for all your overcloking needs.

If you need a top end Z77 board this is where your search should end since any mobo more expensive than this will not provide you with any performance advantages! I have a 3570K at 4.5Ghz at 1.21V and now in offset mode too. Can support SLI and cr...
READ MORE

VINAY THIPPESWAMY

Certified Buyer

Jul, 2013

0
0
Report Abuse
5

ASRock Z77 Extreme 6 is faster and well suport windows 7 and windows 8 user

ASRock Z77 Extreme 6 Motherboard .. is suport all intel Supports 3rd and 2nd Generation Intel Core i7 / i5 / i3 / Xeon / Pentium/ Celeron in LGA1155 processor.
ASRock Z77 Extreme 4 best but Extreme 6 is some more rupees best motherboard, and Z77 Extreme6 has extra...Front USB 3.0 Panel, Rear USB 3.0 Bracket.

the Extreme 4 support SLI & Crossfire. The SLI thing is not a power connector. It is a bridge used when using 2 nVidia cards. Even if the extreme 4 does not have CF bridge, it does not ...
READ MORE

Flipkart Customer

Certified Buyer, Raigad

Jun, 2013

0
0
Report Abuse
5

great mobo..... underpriced giant:D

I bought this mobo from flipkart around 2 months back and i must say i am quite satisfied with the performance of this robust.
my config: Intel i7 3770 3.4 ghz processor
sapphire amd/ati vapor-x radeon hd 7950 oc with boost 3gb gddr5 :D
16 gb g skill sniper 1600 mhz
mobo-this one:)
ocz agility 3 ssd(120 gb)
great utilities and the bios is really cool......
after installing windows 7 home premium 64 bit it took at most 4-5 s...
READ MORE

Amit Sharma

Certified Buyer

Mar, 2013

0
0
Report Abuse
5

GFT ( GO FOR IT )

At this price point only the UD3H is higher but by only 3 %. I paired it with a i7 3770K and it works like a charm. I have two PC's of which in one I used this board, my other build is with the MSI Z77 MPower, no it doesn't come close to it at all, but it would be unfair to say like that because both are in totally different price points.
My 1st Build : Processor:Intel Core i7 3770K
Graphics Card:Gigabyte Ge Force GTX 660 Ti 2 GB GDDR5
RAM:G.Skill Sni.per 8 GB DDR3 1600 MHz
Mobo:(this one) ...
READ MORE

Buzzie Bee

Feb, 2013

0
0
Report Abuse
5

One Of The Best Motherboard

i bought this mobo through flipkart...
& iam just more then satisfied, the delivery was very fast( i got it via. blue dart )
i personally suggest yew this mobo ....
its super fast the utilities with it are superkool...

i used it with an i7-3770k & my bootup time is just 7 to 10 sec. ;) with win 7 ultimate 64-bit

its super fast

the only problem am facing is the 3.o usb bracket........
its nt fitting in my cabby ( mine is cooler master 912 combat mid tower )

the manual shows the way... bt ...
READ MORE

Datta Giri

Certified Buyer

Jan, 2013

0
1
Report Abuse
4

Best in class

Pros:
1) this motherboard provides features of 16-17k motherboard in 10-13k price range.
2) is made for overclocking, thus it has number of overclocking options
3) unlike the extreme 4 motherboard this has the correct motherboard size for an atx cabinet
4) it is future proof. It has compatibility for Ivy bridge, 2800+ MHz RAM and PCI 3.0
5) Multi GPU support for 2 GPUs is very good(at 8x)....for 3 GPUs you'll be playing 4x
6) very fast boot up

Cons:
1) Initial snag with P1.9 version of BIOS...
READ MORE

Rishabh Monga

Certified Buyer, Ludhiana

Dec, 2012

1
0
Report Abuse
1

poor build

giving review after 3 years . as this is very expensive motherboard i thought it will last long but mine stops working in only 3 years . i went to service center and they said it's now out of warranty so nothing can be done . i will not purchase this brand in future . nothing is better than ASUS at least they last long .
READ MORE

SACHIN PATEL

Certified Buyer, Ahmedabad

Jul, 2017

1
0
Report Abuse
+
