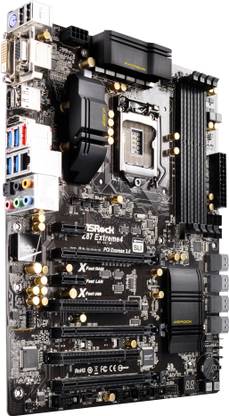

ASRock Z87 Extreme4 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years ASRock India Warranty and Free Transit Insurance

Highlights

Intel Z87
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

1 x ASRock SLI Bridge 2S Card, Quick Installation Guide, Support CD, I/O Shield, 4 x SATA Data Cables

General

Brand	ASRock
Model ID	Z87 Extreme4

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processor, Intel Celeron Processor, Intel 4th Generation Ci7 Processor, Intel 4th Generation Ci5 Processor, Intel 4th Generation Core i3 Processor, Intel Xeon Processor
Chipset	Intel Z87
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1600 MHz, 1866(OC) MHz, 2400(OC) MHz, 2800(OC) MHz, 1333 MHz, 2133(OC) MHz, 2933+(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	Intel Z87
SATA 6 Gb/s	Intel Z87, ASMedia ASM1061
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, AMD Quad CrossFireX, 3-way CrossFireX and CrossFireX, NVIDIA Quad SLI and SLI, Supports NVIDIA Quad SLI and SLI

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	Premium Blu-ray Audio Support, HD Audio with Content Protection, Supports Purity Sound, 115 dB SNR DAC with Differential Amplifier, TI NE5532 Premium Headset Amplifier, Direct Drive Technology, EMI Shielding Cover, PCB Isolate Shielding, Supports DTS Connect

Connectivity

Ethernet Controller	Giga PHY Intel I217 V
Ethernet Features	Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Energy Efficient Ethernet 802.3az, Supports PXE

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	3, 3

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	8
USB 2.0 Headers	3
USB 3.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Power LED Header, 1 x IR Header, 1 x Clear CMOS Switch, 1 x Power Fan Connector, 1 x Vertical Type A USB 3.0, 1 x Dr Debug with LED, 1 x Power Switch with LED, 1 x Reset Switch with LED

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
eSATA Ports, Controller	1
HDMI Ports	2
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DisplayPort, 1 x DVI-D Port

General Features

Overclocking	Supports ASRock BCLK Full-range Overclocking
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-adjust by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs	Drivers, Utilities, Start8, MeshCentral, Splashtop Streamer
Bundled Software	Anti-virus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
OS Support	8, Windows: 7
BIOS	2 x 64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support (1 x Main BIOS and 1 x Backup BIOS), Supports Secure Backup UEFI Technology, ACPI 1.1 Compliance Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05 V, PCH 1.5 V Voltage Multi-adjustment
Features	Intel InTru 3D, CE, Certifications: FCC, ErP/EuP Ready, 1 x HDMI-Out Port, DirectX 11.1, Supports DVI-D with Max Resolution Upto 1920 x 1200, Home Cloud, Easy Driver Installer, 12 Power Phase Design, Supports HDMI Technology with Max Resolution Upto 4096 x 2304, Triple Monitor Support, Digi Power, A-tuning, Pixel Shader 5.0, 1 x HDMI-In Port, XFast 555, Supports D-Sub with Max Resolution Upto 1920 x 1200, Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, WHQL, A-style, Premium Gold Caps
Advanced Technologies	Supports Intel Turbo Boost 2.0 Technology, Intel Rapid Storage Technology 12 and Intel Smart Response Technology, Intel Clear Video HD Technology, Restart to UEFI Technology, Intel Rapid Storage Technology 12 and Intel Smart Response Technology, Supports Intel Remote Wake Technology, Fast Boot Technology, ASRock OMG Technology, XFast 555 Technology
Advanced Features	ASRock A-Tuning, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock UEFI System Browser, ASRock UEFI Tech Service, ASRock Dehumidifier Function, ASRock Easy RAID Installer, ASRock Easy Driver Installer, ASRock Interactive UEFI, ASRock Fast Boot, ASRock Restart to UEFI, ASRock Restart to UEFI, ASRock USB Key, ASRock FAN-Tastic Tuning, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G), Good Night LED

Limitations

Intel HD Graphics Built-in Visuals and the VGA Outputs can be Supported Only with Processors which are GPU Integrated, ErP/EuP Ready Power Supply is Required

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years ASRock India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Pysical Damage
Warranty Service Type	Carry In

Ratings & Reviews

4.8

★

33 Ratings &

9 Reviews

5★
4★
3★
2★
1★

Kick Ass Motherboard

First of all I would like to thank Flipkart for delivering this motherboard in a super packaging which was bubble wrapped and came inside a carton box twice the size of the product box, which was filled with plastic air pillows. Totally Awesome!

I have been using this motherboard for the past two months now, on the Haswell 4770K. I was a hardcore ASUS fanboy for the past 9 years (a board in three years). This time i decided to take a shift. First impressions were awesome! The board looks dam...

Anand Rajagopal

Certified Buyer, Trivandrum

Nov, 2013

Permalink

Report Abuse

excellent product. well build.

Right choice for midrange motherboard section.
Motherboard is well build.
Very good overclocking support as power supply is having heat sink for cooling.
Native usb 3.0 and sata 3.0 is working like a charm.
Multiple display options.
Support for amd cross fire and nvidia sli out of the box.
Pci express 3.0 improve performance of graphics card.
Happy with the purchase.

Ankit Gajjar

Certified Buyer, Kalol

Jan, 2014

Permalink

Report Abuse

Amazing !!!

The AsRock z87 Extreme 4 bagged the "2013 Smart Buy Award" by the authority on tech itself- Tom's Hardware !!! Need I say anything more? It's one of the best sub-13k boards you can get hold of for your Haswell rig. Asrock A-tuning,Instant Flash,APP charger, XFast Lan,Xfast RAM,OMg, Home Cloud, Asrock Fast Boot...well quite a lot of other unique features too. Though I'm not a techno buff, I can say this features are Xtreme!! supports 4K resolution, Purity sound. Quite an interesting UEFI. Flip...

JUGANTA MIKIR

Certified Buyer

Aug, 2013

Permalink

Report Abuse

The rock but not the beast!!! :)

This mobo can handle crysis 3 without any graphic card and it can run games without graphics some games which i tested on this mobo and with my intel core i5 4440 3.10 ghz and 8gb ram corsair vengence are-assassins creed BF maximum 23-25 fps without any graphic card but with medium graphics, it will run crysis 3 in full hd with 14 -17 fps with medium graphics and battle field 4 on full hd with 18-24 fps this is the best product... without graphic card.
The extreme 6 is also the same powe...

Anurag Yadav

May, 2014

Permalink

Report Abuse

Good overall, with cool features, works flawlessly.

At first I thought asRock wouldn't perform that good. But to my surprise it is a good overall built motherboard with some extra features at a lw price range. The UEFI might feel a little sticky, but it has many simplified functions with descriptions side by side.

My motherboard had no problem ocerclocking my 4770k at 4.5 ghz(1.25v) on air cooler, with ram at 1866 dram frequency (1.5v).

You get a lot more than you pay for. Gold capacitors look awsome on black motherboard. And it is 12 phase ...

kavar sandhu

Certified Buyer

Jul, 2013

Permalink

Report Abuse

Fantastic motherboard from ASRock

the built quality is solid and the motherboard looks really good with the golden capacitors.
great for overclockers

surendra prasad

Certified Buyer, Bangalore

Oct, 2014

Permalink

Report Abuse

Excellent features in low cost.

I never saw this kind of features in this prices. build quality, number of sata ports, 3 way display, more usb3 ports pci exp 3 and lot of. and easy to update latest bios rom also by using direct net. Only thing is need local customer support.

Prasad

Certified Buyer, Hyderabad

Sep, 2014

Permalink

Report Abuse

Awesome Motherboard

This is an awesome motherboard for such less price compared to other motherboards!! If you do the comparison of its features, ports etc with other mother boards with same or even higher price, you will see that this mobo is the the biggest bang for buck. Plus the quality of components is also awesome!

Narendra Rane

Certified Buyer

Jan, 2014

Permalink

Report Abuse

One of the best motherboard

Using the product since last one month and pros and cons are as follows,
Pros
1. Good feature
2. 3 PCI express slot so have the option to go for crossfire or SLI
3. Dr debugger included so you can see if there is any problem with the motherboard
4. Attractive Price

Cons
1. Doesn't come with Crossfire Bridge although it comes with SLI Bridge
2. Yet to find.

Susupti Roy

Certified Buyer

Aug, 2013

Permalink

Report Abuse
