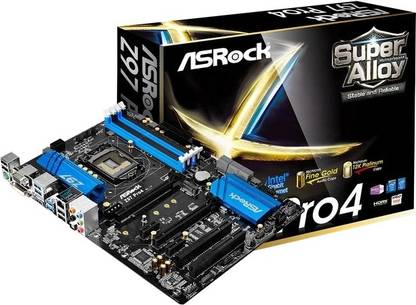

ASRock Z97 Pro4 LGA 1150Socket ATX Intel Z97 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Standard ASRock Warranty

Highlights

Intel Z97
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

Motherboard, Manuals

General

Brand	ASRock
Model ID	Z97 Pro4

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel New 4th Generation Core i7 Processor, Intel 4th Generation Xeon Processor, Intel 4th Generation Core i5 Processor, Intel New 4th Generation Xeon Processor, Intel Pentium Processor, Intel New 4th Generation Core i5 Processor, Intel New 4th Generation Core i3 Processor, Intel 5th Generation Core i5 Processor, Intel 4th Generation Core i3 Processor, Intel 5th Generation Core i3 Processor, Intel 5th Generation Core i7 Processor, Intel Celeron Processor, Intel 4th Generation Core i7 Processor
Chipset	Intel Z97
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	3100+ (OC) MHz, 1066 MHz, 2800 (OC) MHz, 2133(OC) MHz, 2933 (OC) MHz, 1600 MHz, 2400(OC) MHz, 1333 MHz, 1866(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

RAID Configurations

0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Supports AMD Quad CrossFireX and CrossFireX

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	HD Audio with Content Protection, Premium Blu-ray Audio Support, Supports Surge Protection (ASRock Full Spike Protection), Nichicon Fine Gold Series Audio Caps

Connectivity

Ethernet Controller	Intel I218 V
Ethernet Features	Gigabit LAN 10/100/1000 Mbps, Supports Intel Remote Wake Technology, Supports Wake-On-LAN, Supports Lightning/ESD Protection (ASRock Full Spike Protection), Supports Energy Efficient Ethernet 802.3az, Supports PXE

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin), 1 x Power LED Header, Supports M.2 SATA3 6.0 Gb/s Module and M.2 PCI Express Module Upto Gen2 x2 (10 Gb/s), 1 x M.2_SSD (NGFF) Socket 3, 1 x PCIe Power Connector, 1 x Thunderbolt AIC Connector, SATA3_5 and M.2 Socket), CPU Fan Connectors (1 x 4-pin, 1 x SATA Express 10 Gb/s Connector (Shared with SATA3_4, 1 x Chassis Intrusion Header, 1 x Power Fan Connector (3-pin)

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	4
HDMI Ports	1
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	HD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone

General Features

Overclocking	Supports ASRock BCLK Full-range Overclocking
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Auto Adjust Chassis Fan Speed by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Case Open Detection, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs	Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 Days Trial), Orbweb.ME Professional (Windows 8.1)
OS Support	64-bit), 8.1 (32-bit, Microsoft Windows: 7, 8
BIOS	64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support, ACPI 1.1 Compliant Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05 V, PCH 1.5 V Multi-adjustment, UEFI: ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock UEFI Guide, ASRock Instant Flash, ASRock Internet Flash, ASRock Crashless BIOS, ASRock OMG, ASRock UEFI System Browser, ASRock UEFI Tech Service, ASRock Dehumidifier, ASRock Easy RAID Installer, ASRock Easy Driver Installer
Features	ASRock XFast RAM, Intel HD Graphics 4400/4600, DVI-D, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI Monitor is Required), ASRock Full Spike Protection, Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Form Factor: High Density Glass Fabric PCB, Form Factor: Solid Capacitor Design, High Density Glass Fabric PCB, D-Sub with Maximum Resolution Upto 1920 x 1200 at 60 Hz, ASRock Restart to UEFI, Supports Full HD 1080p Blu-ray (BD) Playback with DVI-D and HDMI Ports, DVI-D and HDMI, Intel Insider, CE, ASRock Disk Health Report, Supports Auto Lip Sync, Supports Triple Monitor, ASRock USB Key, ASRock APP Shop, Maximum Shared Memory 1792 MB, Pixel Shader 5.0, Supports HDCP with DVI-D and HDMI Ports, Three Graphics Output Options: D-Sub, ASRock APP Charger, Software: ASRock A-Tuning, Supports HDMI, DirectX 11.1, ASRock Cloud, Deep Color (12bpc), 6 Power Phase Design, WHQL, Intel Clear Video HD Technology, Certifications: FCC, ASRock Super Alloy, ASRock XFast LAN
Advanced Technologies	Supports Intel Turbo Boost 2.0 Technology, Supports Intel K-Series Unlocked CPUs, Intel Rapid Storage Technology 13 and Intel Smart Response Technology, NCQ, AHCI and Hot Plug
Advanced Features	Digi Power Design, Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Standard ASRock Warranty
