ASUS Radeon HD 6950 GDDR5 2 GB AMD/ATI Chipset 256 bit 810 MHz Graphics Card

ASUS Radeon HD 6950 GDDR5 2 GB AMD/ATI Chipset 256 bit 810 MHz Graphics Card

Price: Not Available
Currently Unavailable
Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.Know More
Highlights
  • 810 MHzClock Speed
  • Chipset: AMD/ATI
  • BUS Standard: PCI Express 2.0
  • Graphics Engine: Radeon HD 6950
  • Memory Interface 256 bit
Important Note

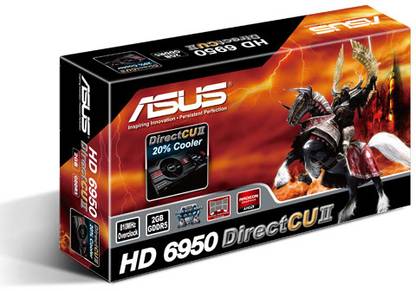

  • The packaging of this product may vary from what is shown in the image.
Specifications
General
Brand
  • ASUS
Graphics Engine
  • AMD/ATI Radeon HD 6950
GPU Clock
  • 810 MHz
Shader
  • Shader Version 5 with Clock speed of 800 MHz
Processors and Cores
  • 1408 Stream Processor, 1408 Shader Processors
RAMDAC Clock Speed
  • 400 MHz
GPU Manufacturing Process
  • 40 nm
Bus Standard
  • PCI Express 2.0
Cooling and Heatsink
  • Fans: 2
Model ID
  • Radeon HD 6950
Memory
Memory
  • 256-bit, 2 GB GDDR5 Memory with 1250 MHz
Memory Bandwidth
  • 160 GB/sec
Display
Maximum Resolution
  • 2560 x 1600 (Digital), 2048 x 1536 (Analog)
Technologies Supported
Graphics Technologies Supported
  • Microsoft DirectX v11, Open GL Optimization v4.1, AMD CrossFireX supported
3D Support
  • Yes support
Connectivity
DVI and HDMI Interface
  • 2 x DVI Output Out, 1 x HDMI Output Out, HDMI (optional via adaptors)
Other Interface
  • 4 x Display Port Out
HD Content Support
  • HDCP Support
Included Technologies
Software Included
  • TriDef 3D Experience
Dimensions
Dimensions
  • 127 x 297.18 mm
Other Features
Additional Features
  • AMD Eyefinity Technology, AMD HD3D Technology
Warranty
Warranty Type
  • Limited - Part and Labour are covered
Warranty Summary
  • Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.
Covered in Warranty
  • During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty
  • Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken. Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centers.
Service Type
  • Carry in
Domestic Term
  • 3 Years
Ratings & Reviews
5
2 Ratings &
2 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 2
  • 0
  • 0
  • 0
  • 0
5

6950 u think ! Oh Wait its a 6970 with a bios flash

This ultimate AMD card can be converted into a 6970 by flashing the bios.

The Radeon HD 6950 and the 6970 are both based on AMD’s Cayman GPU core, having identical specifications except for the cards respective maximum power limit and power connectors. The features that are 'locked' on the AMD Radeon HD 6950 are done so in the GPU’s BIOS or vBIOS and can be ‘easily’ unlocked making the card the same as a AMD Radeon HD 6970 with the exception of the 8-pin PCIe power connector that doesn't ap...
READ MORE

Denzil Crasta

Dec, 2011

5
1
Report Abuse
5

The best HD 6950 2GB Variant

1. Its an overclocking beast. Mine is overclocked @920MHz at 54 C Temperature!

2. Bang for Buck, and More Bang... Plays Every Modern games, including Skyrim, Rage, Arkham city and Saints Row @ an average of 45 FPS(Everything Maxed out , Ultra settings and 16x Anisotrophic Filter and 8X AA plus Morphological filtering and Pointed to Quality in AMD settings)

3. It can be unlocked to Hd6970, but I feel its unethical :P

CONS

1. 2 slotted card makes it difficult for crossfiring with another,...
READ MORE

Arun Hariharan

Dec, 2011

0
0
Report Abuse
