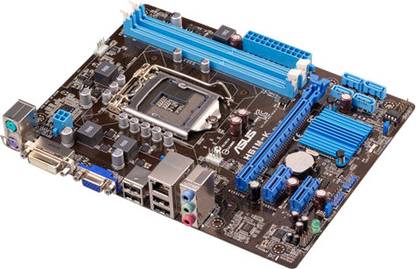

    ASUS H61M-K LGA 1155Socket Micro-ATX Intel H61 (B3) Chipset DDR3 Motherboard

    ASUS H61M-K LGA 1155Socket Micro-ATX Intel H61 (B3) Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    3 Years Domenstic WarrantyKnow More
    Highlights
    • Intel H61 (B3)
    • Data Rate DDR3
    • Maximum RAM Capacity 16
    • Form Factor: Micro-ATX
    Specifications
    In The Box
    Sales Package
    • 1 x Motherboard, 1 x Driver CD
    General
    Brand
    • ASUS
    Model ID
    • H61M-K
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Pentium Processors, Intel 2nd Generation Core i7 Processors, Intel 2nd Generation Core i3 Processors, Intel 2nd Generation Core i5 Processors, Intel Celeron Processors, Intel 3rd Generation Core i7 Processors, Intel 3rd Generation Core i5 Processors, Intel 3rd Generation Core i3 Processors
    Chipset
    • Intel H61 (B3)
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 16 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1866 (O.C.) MHz, 1066 MHz, 2133 (O.C) MHz, 2200 (O.C.) MHz, 1600 MHz, 1333 MHz, 2000 (O.C.) MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Storage
    SATA 3 Gb/s
    • Intel H61 (B3)
    Graphics
    Integrated Graphics card
    • Yes
    Audio
    Audio Codec
    • Realtek ALC887
    Audio Channels
    • 8
    Audio Features
    • High Definition Audio CODEC
    Connectivity
    Ethernet Controller
    • Realtek 8111F
    Ethernet Features
    • 1 x Gigabit LAN Controller
    Expansion Slots
    PCIe x1 Slots, Generation
    • 2
    PCIe x16 Slots, Generation
    • 1
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 2
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x CPU Fan Connector (4-pin), 1 x Internal Speaker Connector, 1 x Front Panel Audio Connector (AAFP), 1 x Clear CMOS Jumper, 1 x 4-pin ATX 12 V Power Connector, 1 x 24-pin EATX Power Connector, 1 x Chassis Fan Connector (4-pin)
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    Support CDs
    • Drivers, Asus Utilities, Asus Update, Anti-virus Software (OEM Version)
    BIOS
    • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM 2.0, SMBIOS v2.7, ACPI v2.0a, SLP3.0, EUP-ready
    Features
    • Asus UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Supports DVI with Maximum Resolution 1920 x 1200 at 60 Hz, Asus EZ DIY: Asus CrashFree BIOS 3, Network iControl, Integrated Graphics Processor - Multi VGA Output Support: DVI / RGB Ports, Anti-Surge, PME Wake Up, Asus Quiet Thermal Solution: Asus Fan Xpert, Supports RGB with Maximum Resolution 2048 x 1536 at 75 Hz, Asus EZ Flash 2, PXE, Asus MyLogo 2, Special Features - Asus Exclusive Features: AI Suite II, Manageability: WOL, Ai Charger
    Advanced Technologies
    • Supports Intel Turbo Boost Technology 2.0
    Advanced Features
    • Supports Intel 22 nm CPU, Supports Intel 32 nm CPU, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Supports CPU up to 77 W
    Warranty
    Domestic Term
    • 3 Years ASUS India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Years Domenstic Warranty
    Covered in Warranty
    • Manufacturing Defects
    Ratings & Reviews
    3.8
    ★
    30 Ratings &
    2 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 13
    • 9
    • 1
    • 2
    • 5
    4

    ASUS H61 M-K Excellent Motherboard

    Guys just jump in and buy this motherboard ..this board is awesome for home use only..

    Highly recommended..
    READ MORE

    MOHAMMED IRSHAD UDDIN

    Dec, 2014

    12
    1
    Permalink
    Report Abuse
    5

    Terrific purchase

    i am happy
    READ MORE

    RALESH KUMAR ROUT

    Certified Buyer, Athagad

    Jan, 2019

    1
    0
    Permalink
    Report Abuse
    Questions and Answers
    Q:does this support i5 8gen processor?
    A:NO ONLY 2ND AND 3RD GEN PROCESSOR WILL SUPPORTZ....
    Mahesh Mukundan
    Certified Buyer
    4
    0
    Report Abuse
    Read other answers
    Q:it support pentium g2030
    A:yes
    Anonymous
    Certified Buyer
    2
    0
    Report Abuse
    Q:It can support AMD RX 570 8GB Graphic card ?
    A:yes
    BVNBNGHNG
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Does it support Rygen 5 3600?
    A:NO
    BVNBNGHNG
    Flipkart Seller
    0
    0
    Report Abuse
    Q:support in i5 2400 processor
    A:YES
    BVNBNGHNG
    Flipkart Seller
    0
    1
    Report Abuse
    Q:Does it support i3 3rd gen ?
    A:yes it does
    SHUBHASHISH RANA
    Certified Buyer
    0
    0
    Report Abuse
    Read other answers
    Q:does it support i3 processor?
    A:yes it's support upto i7 1st zen to 3rd gen
    Anonymous
    Certified Buyer
    0
    0
    Report Abuse
    Read other answers
    Q:does it supports intel i3 3240 dual-core 3.4ghz lga 1155tdp 55w 3mb cache processor
    A:yes 3rd gen upto i7 support
    Md Nurul Hasan
    Certified Buyer
    2
    0
    Report Abuse
    Q:Usb 3.0 enable
    A:YES
    BVNBNGHNG
    Flipkart Seller
    0
    1
    Report Abuse
    Q:amd ryzen processor upto 3gen can works in this motherboard
    A:NO
    GFHBGFR
    Flipkart Seller
    0
    0
    Report Abuse
