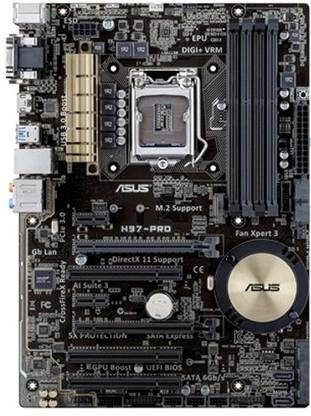

ASUS H97-PRO LGA 1150Socket ATX Intel H97 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

3 Years Asus India Warranty and Free Transit InsuranceKnow More

Highlights

Intel H97
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

Users Manual, Asus Q-Shield, 4 x SATA 6Gb/s Cable, 1 x Q-connector (2 in 1)

General

Brand	ASUS
Model ID	H97-PRO

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processors, Intel 5th Generation Core i3 Processors, Intel 5th Generation Core i7 Processors, Intel 4th Generation Core i7 Processors, Intel 4th Generation Core i3 Processors, Intel New 4th Genaeration Core i7 Processors, Intel New 4th Genaeration Core i3 Processors, Intel New 4th Genaeration Core i5 Processors, Intel 5th Generation Core i5 Processors, Intel Celeron Processors, Intel 4th Generation Core i5 Processors
Chipset	Intel H97
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel H97
RAID Controller	Intel H97
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, Supports AMD Quad-GPU CrossFireX Technology

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	HD Audio Codec Featuring Crystal Sound 2, Supports: Jack-detection, Multi-Streaming, Front Panel Jack-retasking

Connectivity

Ethernet Controller	Intel I218 V
Ethernet Features	1 x Gigabit LAN Controller, Featuring Turbo LAN, Intel LAN-Dual Interconnect between the Integrated LAN Controller and Physical Layer (PHY)

Expansion Slots

PCI Slots	3
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 6 Gb/s Headers	4
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Clear CMOS Jumper, Type 2260/2280 Devices, 1 x M.2 Socket 3 for M Key, 3 x Chassis Fan Connector (3 x 4-pin), 1 x MemOK Button, 1 x 24-pin EATX Power Connector, 1 x GPU Boost Switch, 1 x SATA Express Connector: Black, 1 x System Panel (Q-Connector), Compatible with 2 x SATA 6.0 Gb/s Ports, 1 x S/PDIF Out Header, 1 x CPU Fan Connector (1 x 4-pin)

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Support CDs	Drivers, Asus Utilities, EZ Update, Anti-virus Software (OEM Version)
OS Support	Windows: 7, 8, 8.1
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, Asus EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 Print Screen Function, F3 Shortcut Function, and Asus DRAM SPD (Serial Presence Detect) Memory Information
Features	Asus High-Quality 5 K-Hour Solid Capacitors - 2.5x Long Lifespan with Excellent Durability, Turbo LAN, Supports RGB with Maximum Resolution 1920 x 1200 at 60 Hz, AI Suite 3, Multi-VGA Output Support: HDMI/DVI-D/RGB Ports, Asus Q-Design, DMI 2.7, WOL by PME, Supports Intel InTru 3D, Anti-Surge, Asus Stainless Steel Back I/O - 3x More Durable Corrosion-resistant Coating, Supports DVI-D with Maximum Resolution 1920 x 1200 at 60 Hz, Asus Exclusive Features: GPU Boost, Dimensions: 305 x 218 mm, Asus ESD Guards - Enhanced ESD Protection, Asus Quiet Thermal Solution, PXE, Manageability: WfM 2.0, Ai Charger, Disk Unlocker, Asus Enhanced DRAM Overcurrent Protection - Short Circuit Damage Prevention, Asus EPU: EPU, Crystal Sound 2, USB 3.0 Boost, Management Solution: Intel SBA Support, Quick Sync Video, MemOK, Interactive HomeCloud, Asus EZ DIY, Asus 5X Protection: Asus DIGI+ VRM - 6 Phase Digital Power Design, Integrated Graphics Processor - Intel HD Graphics Support, Supports HDMI with Maximum Resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
Advanced Technologies	Supports Intel Turbo Boost Technology 2.0, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Clear Video HD Technology, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features	Supports Intel Extreme Memory Profile (XMP), Supports Intel 22 nm CPU, Hyper DIMM Support is Subject to the Physical Characteristics of Individual CPU

Warranty

Warranty Summary

3 Years Asus India Warranty and Free Transit Insurance

Ratings & Reviews

4.8

★

9 Ratings &

5 Reviews

5★
4★
3★
2★
1★

Please Please Buy It

This is awsome MOBO What can I say. Its a Great creation specially for videoeditors. i7 4790K works like Ussain bolt running for the 100 meter gold Medal. go for it

Ajay Patel

Mar, 2015

Permalink

Report Abuse

Nice mobo !

its a beast. a very good mobo worth the price, the built quality is awesome. tho u can get z97 chip for this price if u want to go for overclocking, but in my case, i was not that much into CPU overclocking so this was the perfect match for me !

SANCHIT KALHAN

Certified Buyer, Chandigarh

Dec, 2014

Permalink

Report Abuse

One Great Motherboard

It Works Like A Charm No Compatibility Issues . Easy To Use Bios And Fan Xpert What Else You Want.........It Is Pretty Sturdy.....

Nimish Niret Soren

Certified Buyer, Delhi

Nov, 2014

Permalink

Report Abuse
