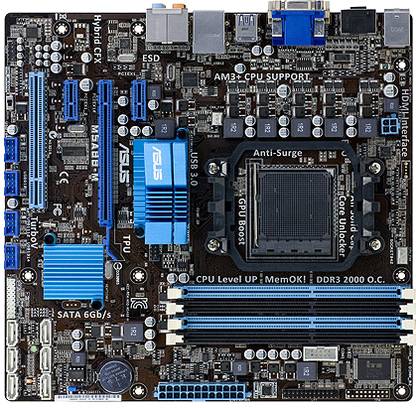

ASUS M5A88-M AM3+Socket Micro-ATX AMD 880G Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period, The Limited Warranty Period starts from the date of purchase, Your sales receipt showing the date of purchase is the proof of your purchase date, You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service, You are entitled to a hardware warranty service if a repair is required within the Limited Warranty PeriodKnow More

Highlights

Suitable For Desktop
AMD 880G
Data Rate DDR3
Maximum RAM Capacity 16 GB
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, User Guide, Driver CD, Port-Plate, Cables and Jumpers

General

Brand	ASUS
Model ID	M5A88-M

Essentials

Form Factor	Micro-ATX
Socket Type	AM3+
Compatible Processors	AMD Athlon IIX2, AMD Athlon IIX3, AMD Athlon IIX4, AMD FX, AMD Phenom IIX2, AMD Phenom IIX3, AMD Phenom IIX4, AMD Phenom IIX6, AMD Sempron 140, AMD Sempron 145, AMD Sempron 150, AMD Sempron 180, AMD AM3+ FX4100, AMD AM3+ FX6100
Chipset	AMD 880G, AMD SB850
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	4 Slots
Memory Configuration	16 GB DDR3 Dual Channel DIMM
Memory Frequency	2000(O.C) MHz, 1866(O.C) MHz, 1600(O.C) MHz, 1333 MHz, 1066 MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 6 Gb/s	AMD SB850
RAID Controller	AMD SB850
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	ATI Radeon HD 4250 GPU
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek ALC 892
Audio Channels	8
Audio Features	High Definition Audio, Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound, Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking

Connectivity

Ethernet Controller

Realtek 8111E

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x S/PDIF out Header, 1 x 4-pin ATX 12V Power connector, 1 x parallel port connector, 1 x System panel, 1 x MemOK button, 1 x Core UnlO.Cker switch

Back Panel Ports

USB 2.0 Ports, Controller	12
USB 3.0 Ports, Controller	2, ASMedia USB 3.0
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
Support CDs	ASUS Utilities, ASUS Update
Bundled Software	Anti-virus software (OEM version)
BIOS	16 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Features	Supports AM3+ 32 nm CPU, Supports CPU up to 140 W, True USB 3.0 and SATA 6Gb/s Support
Advanced Technologies	AMD Cool n Quiet Technology
Advanced Features	ASUS Xtreme Design: ASUS Hybrid PrO.Cessor - TurboV EVO: Turbo UnlO.Cker, Auto Tuning, TurboV, CPU Level Up, GPU Boost,ASUS Hybrid Switch: Core UnlO.Cker, ASUS Power Design: ASUS EPU, ASUS Exclusive Features: MemOK, Anti-Surge, ASUS Quiet Thermal Solution: Stylish Fanless Design Heat-sink solution, ASUS Fan Xpert, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS MyLogo 2

Dimensions

244 x 244 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period, The Limited Warranty Period starts from the date of purchase, Your sales receipt showing the date of purchase is the proof of your purchase date, You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service, You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period
Covered in Warranty	During the Limited Warranty Period, Asus will at its sole discretion, Repair or replace any defective component, All spare-parts or module removed under this Limited Warranty become the property of Asus
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, Destruction, Warranty invalid if serial label is removed, Broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres, This Limited Warranty does not cover any software applications or programs, Non-Asus products or non-Asus branded peripherals
Warranty Service Type	On Site (Based on the lO.Cation)

Ratings & Reviews

4.7

★

91 Ratings &

37 Reviews

5★
4★
3★
2★
1★

Superbly built, superbly featured and superbly cheap!!!

First of all, I'm not a hardcore gamer or anything, but sometimes i do play some high graphic games like crysis2 and NFS The Run.

So now to my personal opinion and experience ; I cannot be more satisfied with this motherboard. When I opened the box and took it in my hand I was truly amazed by its built quality and design. I've fused the AMD Bulldozer FX-4100 procesor, 4gb corsair xms3 (1600mhz) and XFX HD Radeon 6770 to this mobo and I'm so much satisfied by the way this whole package perfor...

Rahul

Jan, 2012

Permalink

Report Abuse

BANG FOR THE BUCK

not to describe flipkart's excellent services as everyone is fully satisfied with them, this motherboard has every feature you can get in a motherboard
Pros:
* AMD Radeon HD 4250 onboard graphics supports full HD movies and games.
* 2 X USB 3.0 ports + 4X USB 2.0 ports on back I/O panel + 4X internal USB 2.0 headers. Enough,,,
* 6X SATA3 6.0Gb/s headers means your fastest SSDs can perform their best
* excellent build quality, after all its an ASUS.
* 1X PCI + 2X PCIe X1 + 1X PCIe X16 expansio...

Prabhjot Matharoo

Certified Buyer

Apr, 2012

Permalink

Report Abuse

Using this MOBO from Nov-2011 till date

THIS IS THE BEST MOBO OUT THERE IN TERMS OF PERFORMANCE & PRICE, EVEN FOR HARDCORE GAMMING WITH A TIGHT BUDGET, THE BEST THING IS IT HAS A ONBOARD INTERGRATED GRAPHICS & IF U WANT U CAN USE A GRAPHICS CARD, HAVE TESTED BOTH OF THEM WITH GAMES LIKE WITCHER2, RAGE, COD3 & IT RUNS AWESOME WITHOUT ANY LAGGIN ONBOARD & RIGHT NOW USING NVIDIA 550TI 2 GB DDR5 CARD & BOY ITS A BLISS...IF UR READING THIS THEN I SUGGEST GO FOR IT...

neo Mohammed Naseruddin Patel

Feb, 2012

Permalink

Report Abuse

Good Motherboard

I bought this mobo and paired it with an AMD 8150-FX. I am aware that another reviewer had said that his mobo had required flashing to enable it to be used with an 8120-FX. However, I did not have this problem and my CPU was supported out of the box.

Much of this has to do with the the Asus BIOS revision. I had rev. 1100 - the 8150-FX is supported from rev. 0502 onwards. To know your BIOS revision look at the bar-coded sticker on the mobo near the 24V connecter. The last 4 digits will give t...

Anurup Mitra

Certified Buyer

Jul, 2012

Permalink

Report Abuse

everything you need

This is a very good motherboard. Absolutely great for any kind of work. Anyone who wants a good amd mobo , read the product info and take it without any second thoughts. But I recommend a good '450 W PSU' for this.

pro -
- memok switch which makes recovery from boot failure an absolute breeze.
- core unlocker hotkey makes it easy to unlock processor without going into the bios.
- six SATA 6 gb/s ports (mobo comes with two cables)
- two USB 3.0 ports.
- comes with very good software(bundled...

Arunabh Bora

Certified Buyer

Dec, 2012

Permalink

Report Abuse

this motherboard is pretty good

first of all the flipkarts delivery was on time ,thanks to them ...this motherboard is best in its price range , Its Integrated Graphics was good to play HD movies and latest games ..i'll giv five stars for it

Kamal S

Certified Buyer

Nov, 2012

Permalink

Report Abuse

A neat and great Mainboard

First of all thanks Flipkart for Super fast shipment and delivery... The Product was shipped same day of payment.

I was bit surprised to see this MB is not available in Mumbai retailers. Every retailer to whom i asked for this M/B said that this is not available or said don't buy it, its not good Motherboard or Service is bad and suggested Gigabyte.

Well i used to be an Hardware professional earlier i know how good are Asus boards and how bad are Gigabyte. I had regular visits to Gigabyte s...

Sameer Mhatre

Certified Buyer

Oct, 2012

Permalink

Report Abuse

This is a Great Product!!! Very happy with it.

I own this product and this is an ace product. For AMD this one is great. I have an AMD FX6100 hooked onto it. The features you get with this motherboard are simply amazing. It's the best motherboard I ever bought.
The best thing I like about this is the MEMOK! Switch:
One day my PC wouldn't boot up and I just opened up my cabinet and I saw a RED LED Light continuously ON. I checked out the manual to see what it was. It was a memory issue and all I had to do was press the MEMOK! button next...

Khalandar Sha Khan

Aug, 2012

Permalink

Report Abuse

Best AMD MotherBoard in this range

In Rs.5000.00 range, this is one of the best motherboard for AMD processors. AMD 880G Chipset and AMD SB850. True USB3.0 and SATA3 (6 Gb/s). AMD Radeon HD 4250 onboard graphics. What more can you expect at this price-range. And of course Asus's great build quality. Very nice board.

I built a PC for my friend. I added Radeon 5570 graphics card; but I'm sure the onboard graphics card itself has enough juice for normal applications and low-end gaming.

Available cheapest on Flipkart. My local h...

Benny Varghese

Certified Buyer

Jun, 2012

Permalink

Report Abuse

Gamming Motherboard !!!!!

yes this is absolutely gamming motherbord in this price list.
flipkart service very good and exelent package.
after i bought this motherbosrd i was planned to buy a graphics card for gamming but my buget problem i cant able to buy .
unfortunately i bought mafia 2 game and i tried its working in low setting not only mafia 2 after that i am playing fear 3, prototype in medium setting .
my configuration:
AMD Phenom x4 960t
1600mhz 4GB ram
pc case antec 200
psu antec p450.
I checked in many ga...

Prabhakaran N

Certified Buyer

Jul, 2012

Permalink

Report Abuse
