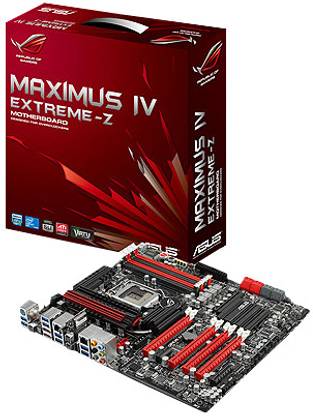

    ASUS MAXIMUS IV Extreme-Z LGA 1155Socket ATX Intel Z68 Chipset DDR3 Motherboard for Desktop

    ASUS MAXIMUS IV Extreme-Z LGA 1155Socket ATX Intel Z68 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Customer contacts 1800-2090-365 for supportKnow More
    Highlights
    • Suitable For Desktop
    • Intel Z68
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    In The Box
    Sales Package
    • User Manual, ROG Exclusive Feature Guide, I/O Shield, 2 x SATA 3 Gb/s Cable, 2 x SATA 6 Gb/s Cable, 1 x 3-Way SLI Bridge, 1 x SLI Bridge, 1 x CrossFire Cable, 1 x Q-connector (2 in 1), 1 x 2-port USB 2.0 Module, 1 x ROG Connect Cable, 1 x ProbeIt Cable Set, 1 x Thermal Sensor Cable Pack, 1 x Cable Ties Pack, 1 x ROG Theme Label, 1 x 12 in 1 ROG Cable Label,1 x RC Bluetooth Card, Driver Disk, Motherboard
    General
    Brand
    • ASUS
    Model ID
    • MAXIMUS IV Extreme-Z
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel 2nd Generation Core i3, Intel 2nd Generation Core i5, Intel 2nd Generation Core i7, Intel Celeron, Intel Pentium
    Chipset
    • Intel Z68
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1333 MHz, 1600 MHz, 1866(O.C) MHz, 2200(O.C) MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Storage
    SATA 3 Gb/s
    • Intel Z68 Chipset
    SATA 6 Gb/s
    • Intel Z68 Chipset
    RAID Controller
    • Intel Z68 Chipset
    RAID Configurations
    • 0, 1, 5, 10
    Graphics
    External Graphics Card Support
    • Yes
    Multi GPU Support
    • Yes, NVIDIA 3-Way SLI, AMD CrossFireX, LucidLogix Virtu
    Audio
    Audio Codec
    • Realtek ALC889
    Audio Channels
    • 8
    Audio Features
    • High Definition Audio, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Connectivity
    Ethernet Features
    • 2 x Gigabit LAN
    Expansion Slots
    PCIe x1 Slots, Generation
    • 1, 2
    PCIe x4 Slots, Generation
    • 1, 2
    PCIe x16 Slots, Generation
    • 4, 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    SATA 6 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 4
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 3 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x S/PDIF Out Header, 1 x 24-pin EATX Power Connector, 1 x Front Panel Audio Connector (AAFP), 1 x System Panel, 3 x Thermal Sensor Connector, 1 x RC Bluetooth Header, 1 x LN2 Mode Header, 2 x EZ Plug Connector, 1 x ROG Light Connector
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 1
    USB 3.0 Ports, Controller
    • 8, NEC USB 3.0
    eSATA Ports, Controller
    • 2, JMicron JMB362
    Audio I/O Channels
    • 6
    RJ-45 Ethernet Jacks
    • 2
    PS/2
    • 1
    General Features
    Overclocking
    • ROG Connect, RC Bluetooth: RC TweakIt, ROG iDirect, Extreme Engine Digi+: 8 - phase CPU Power Design + 4 - phase iGPU Power Design, 3 - phase Memory Power Design, ML Caps on CPU Respectively, Mem TweakIt, ROG Extreme OC kit: LN2 Mode, PCIe x16 Lane Switch, Debug LED, Q Reset, ProbeIt, UEFI BIOS Features: ROG BIOS Print, GPU.DIMM Post, CPU Socket Monitor, iROG, Extreme Tweaker, Loadline Calibration, BIOS Flashback, USB BIOS Flashback, Overclocking Protection: COP EX (Component Overheat Protection - EX), Voltiminder LED, ASUS C.P.R.(CPU Parameter Recall)
    Support CDs
    • Support DVD: Drivers and Applications, ASUS AI Suite II, ROG CPU-Z, 3DMark Vantage, ROG Mem TweakIt Utility, ASUS AI Charger
    Bundled Software
    • Kaspersky Anti-Virus 1-Year License
    BIOS
    • 64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a, Multi-Language BIOS
    Features
    • Supports Intel 32 nm CPU, Mem TweakIt, ROG Connect, USB BIOS Flashback, Manageability: WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
    Advanced Technologies
    • Intel Turbo Boost Technology 2.0
    Advanced Features
    • ASUS TurboV EVO: CPU Level Up, ASUS Exclusive Features: MemOK, Onboard Button: Power/Reset/Clr CMOS (at back IO), ASUS Quiet Thermal Solution: ASUS Q-Fan Plus, ASUS Fan Xpert, ASUS Q-Fan, ASUS EZ DIY: ASUS Q-Shield, ASUS O.C. Profile, ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS MyLogo 2, ASUS Q-Design: ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED), ASUS Q-Slot, ASUS Q-DIMM, ASUS Q-Connector
    Limitations
    • External Graphics Card Required (not included in the box)
    Dimensions
    Dimensions
    • 305 x 269 mm
    Warranty
    Domestic Term
    • 3 Years ASUS India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer contacts 1800-2090-365 for support
    Covered in Warranty
    • During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this limited Warranty become the property of Asus.
    Not Covered in Warranty
    • Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals.
    Warranty Service Type
    • On Site (Based on the location)
