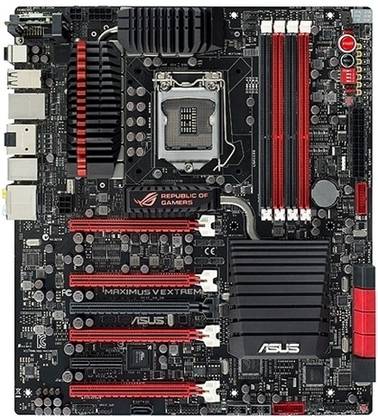

Asus Maximus V Extreme Motherboard

Price: Not Available

Currently Unavailable

3 Years Asus India Warranty and Free Transit InsuranceKnow More

Highlights

Intel Z77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: EATX

Specifications

In The Box

Sales Package

User Manual, 1 x I/O Shield, 2 x SATA 3 Gb/s Cable, 6 x SATA 6 Gb/s Cable, 1 x 3-way SLI Bridge, 1 x 4-way SLI Bridge, 1 x SLI Bridge, 1 x CrossFire Cable, 1 x Q-connector (2 in 1), 1 x 2-port USB 2.0 and eSATA Module, 1 x ROG Connect Cable, 1 x ProbeIt Cable Set, 1 x 12 in 1 ROG Cable Label, 1 x mPCIe Combo Card with Dual Band WiFi 802.11 a/b/g/n Module + Bluetooth v4.0/3.0 + HS Module, 1 x 2-in-1 RF Cable, 2 x Wi-Fi Ring Moving Antenna, 1 x OC Key, 1 x OC Key Cable

General

Brand	ASUS
Model ID	Maximus V Extreme

Essentials

Form Factor	EATX
Socket Type	LGA 1155
Compatible Processors	G540T, G555, 3475S, G530T, 3470T, G630, 3210, 3570S, 2600S, 2130, G870, 2400, 2125, 2500T, 3550, 2700K, 2500, Intel Xeon Processors - E3-1220 v2, G2020T, G645T, 3450, G550T, 3770S, E3-1230, 2450P, 2320, G620, 2405S, 3550S, G620T, G2130, Intel Core i3 Processors - 2100, G860, G530, 2120, G460, Intel Celeron Processors - G1610, 2120T, 3470S, G1610T, E3-1245 v2, Intel Core i5 Processors - 2300, 3570T, 3770K, G440, G850, E3-1240, G2020, 2100T, G540, 2310, 2500S, G630T, 3350P, G860T, G645, 3450S, G465, 2600K, 2105, 3570, G1620, 3770, G640T, 2380P, E3-1265L v2, Intel Core i7 Processors - 2600, G840, 3470, 3770T, 2500K, G550, Intel Pentium Processors - G2010, G640, 2400S, 3570K, 2390T, E3-1240 v2, E3-1230 v2, 2550K, E3-1225 v2
Chipset	Intel Z77
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	2000(O.C) MHz, 2400(O.C) MHz, 1066 MHz, 2666(O.C) MHz, 2600(O.C) MHz, 2133(O.C) MHz, 1600 MHz, 2800(O.C) MHz, 1866(O.C) MHz, 1333 MHz, 2200(O.C) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	Intel Z77 Express
SATA 6 Gb/s	Intel Z77 Express, ASMedia
RAID Controller	Intel Z77 Express
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, NVIDIA 4-way SLI Technology, AMD CrossFireX Technology, LucidLogix Virtu MVP Technology

Audio

Audio Codec	Realtek ALC898
Audio Channels	7.1
Audio Features	High Definition Audio Codec, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Blu-ray Audio Layer Content Protection, Optical S/PDIF Out Port at Back Panel, Optical S/PDIF In Port at Back Panel

Connectivity

Ethernet Controller	Intel
Ethernet Features	1 x Gigabit LAN Controller
Wireless and Bluetooth	Wi-Fi 802.11 a/b/g/n, Supports Dual Band Frequency 2.4/5 GHz and Bluetooth v4.0, v3.0 + HS

Expansion Slots

PCIe x4 Slots, Generation	1, 2
PCIe x16 Slots, Generation	5
Mini PCIe Slots	1

Internal I/o Headers

SATA 3 Gb/s Headers	3
SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	2
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x 6-pin EZ_PLUG Power Connector, 1 x Reset Button, 1 x 4-pin EZ_PLUG Power Connector, 1 x ROG Connect Switch, 2 x VGA Hotwire, 2 x Subzero Sense Connector, 1 x Power-on Button, 1 x 24-pin EATX Power Connector, 3 x Thermal Sensor Connector, 7 x ProbeIt Cable Connector, 1 x Slow Mode Switch, 3 x Optional Fan Connector (4 -pin), 1 x OC Key Header, 1 x BIOS Switch Button, 1 x Go Button, 1 x 4-pin ATX 12 V Power Connector, 1 x LN2 Mode Switch, 1 x mPCIe Combo Header, 15 x ProbeIt Measurement Points, 1 x S/PDIF Out Header, 1 x System Panel

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	4, ASMedia, Intel Z77 Express
HDMI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	2 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x Thunderbolt Port, 1 x Display Port, 1 x ROG Connect On/Off Switch, 1 x Clear CMOS Button

General Features

Overclocking	mPCIe Combo (mPCIe/mSATA Combo Card), ROG OC Key, ROG Connect, Extreme Engine Digi+ II, ROG Extreme OC Kit, ProbeIt, iROG, Extreme Tweaker, Loadline Calibration, USB BIOS Flashback, Overclocking Protection
Support CDs	Drivers, Asus Utilities, Asus Update
Bundled Software	Anti-virus Software (OEM Version)
OS Support	Windows: XP, 7, 8
BIOS	64 Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Features	Intel Extreme Memory Profile (XMP), Intel 32 nm CPU, HDMI with Maximum Resolution 1920 x 1200 at 60 Hz, Display Port with Maximum Resolution 2560 x 1600 at 60 Hz, Quick Sync Video, InTru 3D, Fast Boot, Daisy-chain upto 6 Thunderbolt Devices, Thunderbolt: VGA Output Support, 1 x mini-SATA 3 Gb/s Port, Data Transfer Rate upto 10 Gbps, Supports Intel 22 nm CPU, Intel HD Graphics, Asus Boot Setting, Thunderbolt with Maximum Resolution 2560 x 1600 at 60 Hz
Advanced Technologies	Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, Clear Video HD Technology, Intel Turbo Boost Technology 2.0
Advanced Features	Asus TurboV EVO, Asus EPU, Asus Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard and Mouse, File Transfer, Capture and Send, AI Suite II, Ai Charger+, USB Charger+, USB 3.0 Boost, Disk Unlocker, Asus Quiet Thermal Solution, Asus EZ DIY, Asus Q-Design

Limitations

The Intel Turbo Boost Technology 2.0 support depends on the CPU types. Hyper DIMM support is subject to the physical characteristics of individual CPUs. LucidLogix Virtu MVP supports Windows 7 operating systems. PCIe3.0 speed is supported by Intel 3rd genernation Core Processors. Native x8/x8 mode is available when only PCIE_X16X/X8_1 and PCIE_X8_2B slots are in used. The mini-PCIe slot is on mPCIe Combo expansion card. The mini-PCIe slot is pre-installed with an Wi-Fi/Bluetooth module. 1 SATA 3Gb/s port at mid-board is reserved for eSATA. A 2-port USB 2.0 and eSATA module is bundled for 1 x eSATA port at rear. The mini-SATA slot is on mPCIe Combo expansion card. Supports on Intel Core processor family with Windows 7 operating systems. These SATA ports are for data drives only.

Dimensions

305 x 272 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Asus India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Tampering, Physical Damages
Warranty Service Type	Carry In

Ratings & Reviews

4.7

★

3 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Asus Maximus V Extreme Motherboard

REPUBLIC OF GAMERS

True to the title this is an absolute gaming build hardware.
Dedicated to gaming which supports upto QUAD SLI configuration using DUAL GPU cards.

Very good design best build with premium features with Dual Band Wifi and bluetooth 4.0
Add on cards make experience twice.

This board is dedicated to extreme PC ENTHUSIASTS and GAMERS.
Some of features were ripped as compared to MAXIMUS V FORMULA for some benefit.
FUSION THERMO Is replaced with more advanced cooling solutio...

Gyan Prakash

May, 2014
