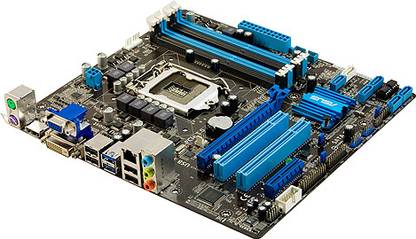

    ASUS P8B75-M LGA 1155Socket Micro-ATX Intel B75 Chipset DDR3 Motherboard

    ASUS P8B75-M LGA 1155Socket Micro-ATX Intel B75 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Customer Contacts 1800-2090-365 or 022-40471231/32 for SupportKnow More
    Highlights
    • Intel B75
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2, Intel B75 Chipset
    HDMI Ports
    • 1
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    Other Ports
    • 1 x DVI-D
    General Features
    OS Support
    • 8, Windows 7
    BIOS
    • 128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
    Features
    • Supports Intel 32 nm CPU, CrashFree BIOS 3, Supports Intel 22 nm CPU, Green Asus, Asus Anti-Surge Protection, Asus FanXpert
    Advanced Technologies
    • Intel 2.0 Turbo Boost Technology
    Advanced Features
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function, ASUS Exclusive Features: MemOK!, AI Suite II, Ai Charger, Anti-surge, ASUS UEFI BIOS EZ Mode, Network iControl, USB 3.0 Boost, ASUS Quiet Thermal Solution: ASUS Fan Xpert, ASUS Q-Fan 2, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS MyLogo 2, Manageability: WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, ASUS EPU: EPU
    Warranty
    Domestic Term
    • 3 Years ASUS India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts 1800-2090-365 or 022-40471231/32 for Support
    Covered in Warranty
    • During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this limited Warranty become the property of Asus.
    Not Covered in Warranty
    • Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals.
    Warranty Service Type
    • On Site (Based on the location)
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 2000 (O.C) MHz, 1066 MHz, 1800 (O.C) MHz, 2200 (O.C) MHz, 1600 MHz, 1333 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Limitations
    • Due to Intel Chipset Limitation, P8B75 Series Motherboards do not Support Windows Vista Operating System.
    Dimensions
    Dimensions
    • 226 x 244 mm
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
    Chipset
    • Intel B75
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • Yes
    Multi GPU Support
    • Yes, LucidLogix Virtu MVP Technology
    Storage
    SATA 3 Gb/s
    • Intel B75 Express Chipset
    SATA 6 Gb/s
    • Intel B75 Express Chipset
    Expansion Slots
    PCI Slots
    • 2
    PCIe x4 Slots, Generation
    • 1, 2
    PCIe x16 Slots, Generation
    • 1
    General
    Brand
    • ASUS
    Model ID
    • P8B75-M
    Key Features
    • LGA 1155 Socket Type, Maximum 32 GB DDR3, Intel B75, 4 Memory Slots, Dual Channel DIMM Memory, 1 HDMI Ports, Micro-ATX Form Factor
    Connectivity
    Ethernet Controller
    • Realtek 8111F-VB-CG
    Ethernet Features
    • Gigabit LAN
    Audio
    Audio Codec
    • VT1708S
    Audio Channels
    • 8
    Audio Features
    • High Definition Audio
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 5
    SATA 6 Gb/s Headers
    • 1
    USB 2.0 Headers
    • 2
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x MemOK! Button, 1 x Internal Speaker Connector, 1 x COM Port (s) Connector (s), 1 x Parallel Port Connector, 1 x S/PDIF Out Header, 1 x System Panel, 1 x 4-pin ATX 12V Power Connector, 1 x Chassis Intrusion Connector
