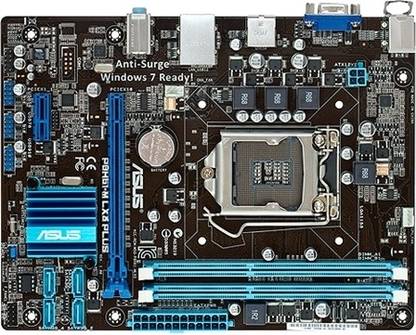

Asus P8H61-M LX3 Plus Motherboard

Price: Not Available

Currently Unavailable

3 Years Asus India Warranty and Free Transit InsuranceKnow More

Highlights

Intel H61
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

User Manual, 1 x I/O Shield, 2 x SATA 3 Gb/s Cable

General

Brand	ASUS
Model ID	P8H61-M LX3 Plus

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Core i3 Processors, Intel 2nd Generation Core i7 Processors, Intel 2nd Generation Core i5 Processors
Chipset	Intel H61
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s

Intel H61 Express

Graphics

Integrated Graphics card

Audio

Audio Codec	VIA VT1708S
Audio Channels	8
Audio Features	High Definition Audio Codec, Multi-streaming

Connectivity

Ethernet Controller	Realtek 8111F
Ethernet Features	1 x Gigabit LAN Controller

Expansion Slots

PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 3 Gb/s Headers	4
USB 2.0 Headers	3
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Internal Speaker Connector, 1 x 4-pin ATX 12 V Power Connector, 1 x 24-pin EATX Power Connector

Back Panel Ports

VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

Support CDs	Drivers, Asus Utilities, Asus Update
Bundled Software	Anti-virus Software (OEM Version)
OS Support	Windows: 7
BIOS	32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a , Multi-language BIOS
Features	Supports RGB with Maximum Resolution 2048 x 1536 at 75 Hz, Supports Intel 32 nm CPU
Advanced Features	Asus Exclusive Features: AI Suite II, Anti-Surge, Asus UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Asus Quiet Thermal Solution, Asus EZ DIY, 100 % All High-quality Conductive Polymer Capacitors

Limitations

Due to OS limitation, when installing total memory of 4 GB capacity or more, Windows 32-bit operation system may only recognize less than 3 GB. Install a 64-bit Windows OS when you want to install 4 GB or more memory on the motherboard.

Dimensions

226 x 173 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Asus India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Tampering, Physical Damages
Warranty Service Type	Carry In
