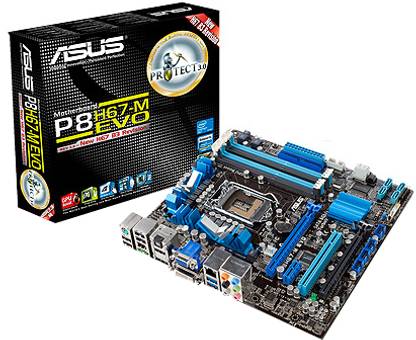

ASUS P8H67-M EVO LGA 1155Socket Micro-ATX Intel H67 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.Know More

Highlights

Suitable For Desktop
Intel H67
Data Rate DDR3
Maximum RAM Capacity 32 GB
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, User Guide, Driver CD, Port-Plate, Cables and Jumpers

General

Brand	ASUS
Model ID	P8H67-M EVO

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	2nd Generation Core i3, 2nd Generation Core i5, 2nd Generation Core i7, Intel Celeron, Intel Pentium processors
Chipset	Intel H67
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 3 Gb/s	Intel H67 (B3) Chipset
SATA 6 Gb/s	Intel H67 (B3) Chipset
RAID Controller	Intel H67 (B3) Chipset
RAID Configurations	0, 1, 5, 10
PATA Ultra DMA	1, Marvell 88SE6111

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, AMD Quad-GPU CrossFireX

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	High Definition Audio

Connectivity

Ethernet Controller	Realtek 8111E
IEEE 1394a FireWire Controller	VIA 6315N
Number of FireWire Ports	2

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	2, 2

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x System panel (Q-Connector), 1 x IDE connector, 1 x EPU switch, 1 x MemOK button, 1 x GPU Boost switch, 1 x Clear CMOS jumper

Back Panel Ports

USB 2.0 Ports, Controller	12
USB 3.0 Ports, Controller	2, ASMedia
HDMI Ports	1
IEEE 1394a Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
Support CDs	Drivers, ASUS Update, ASUS Utilities, Ai Charger+
Bundled Software	Anti-virus software (OEM version)
BIOS	32 Mb Flash ROM, EFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Advanced Technologies	Turbo Boost Technology 2.0
Advanced Features	ASUS TurboV EVO: Auto Tuning, TurboV, GPU Boost with switch, ASUS EPU: EPU, EPU switch, ASUS Power Design: 8 +2 Phase Power Design, ASUS Exclusive Features: MemOK, AI Suite II, Ai Charger+, Anti-Surge, ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface, ASUS Quiet Thermal Solution: Stylish Fanless Design Heat-sink solution, ASUS Fan Xpert, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS Q-Design: ASUS Q-Slot, ASUS Q-DIMM, ASUS Q-Connector

Dimensions

244 x 244 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs; non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the lO.Cation)
