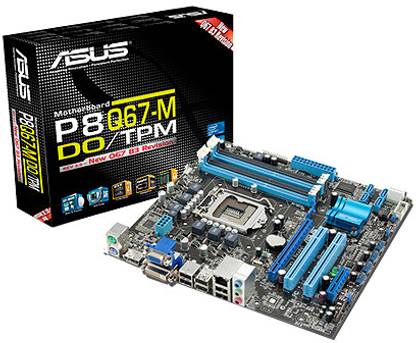

ASUS P8Q67-M DO/TPM LGA 1155Socket Micro-ATX Intel Q67 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Customer contacts 1800-2090-365 for supportKnow More

Highlights

Specifications

In The Box

Sales Package

User Manual, I/O Shield, 1 x SATA 3Gb/s Cable, 1 x SATA 6Gb/s cable, Driver Disk, Motherboard

General

Brand	ASUS
Model ID	P8Q67-M DO/TPM

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Core i3, Intel 2nd Generation Core i5, Intel 2nd Generation Core i7, Intel Celeron, Intel Pentium
Chipset	Intel Q67
Chipset Manufacturer	Intel

Memory

Storage

Graphics

Integrated Graphics card

Audio

Audio Codec	VIA VT1708S
Audio Channels	8
Audio Features	High Definition Audio, Supports: Jack-detection, Multi-streaming, Anti-pop Function

Connectivity

Ethernet Controller	Intel 82579
Ethernet Features	1 x Gigabit LAN

Expansion Slots

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x S/PDIF Out Header, 1 x 24-pin EATX Power Connector, 1 x 4-pin ATX 12V Power Connector, 1 x Parallel Port Connector, 1 x Internal Speaker Connector, 1 x System Panel, 1 x Chassis Intrusion Connector

Back Panel Ports

General Features

Support CDs	Drivers, ASUS Utilities, ASUS Update
Bundled Software	Anti-virus Software (OEM version)
BIOS	64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Features	TPM IC Onboard, SATA 6 Gb/s Support, EFI BIOS
Advanced Features	ASUS EPU: EPU, GPU Boost, ASUS Exclusive Features: Anti-Surge, ASUS Quiet Thermal Solution: ASUS Q-Fan 2, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS MyLogo 2, TPM IC Onboard

Dimensions

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Customer contacts 1800-2090-365 for support
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the location)
