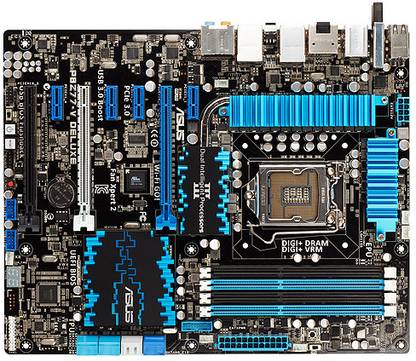

ASUS P8Z77-V DELUXE LGA 1155Socket ATX Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Customer Contacts 1800-2090-365 for SupportKnow More

Highlights

Data Rate DDR3
Maximum RAM Capacity 32 GB
Form Factor: ATX

Specifications

In The Box

Sales Package

Motherboard, User Guide, Driver CD, Port-Plate, Cables and Jumpers

General

Brand	ASUS
Model ID	P8Z77-V DELUXE

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Processor, Intel 3rd Generation Processor
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 3 Gb/s	Intel Z77 Chipset
SATA 6 Gb/s	Intel Z77 Chipset, Marvell PCIe 9128 Controller, ASMedia PCIe SATA Controller
RAID Controller	Intel Z77 Chipset, Marvell PCIe 9128 Controller
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, NVIDIA Quad GPU SLI Technology, AMD Quad GPU CrossfireX Technology, AMD 3-way CrossfireX Technology, Lucidlogix Virtu MVP Technology

Audio

Audio Codec	Realtek ALC898
Audio Channels	8
Audio Features	Jack-detection, Multi-streaming, Front Panel Jack-retasking, Absolute Pitch 192 KHz, 24-bit True BD Lossless Sound, DTS Ultra PC II, DTS Connect, Optical S/PDIF Out Ports at Back Panel

Connectivity

Ethernet Controller	Intel 82579V, Realtek 8111F
Ethernet Features	1 x Gigabit LAN Controller
Wireless and Bluetooth	1

Expansion Slots

PCIe x1 Slots, Generation	4, 2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 4 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x DisplayPort, 1 x S/PDIF Out Header, 1 x System Panel, 1 x MemOK Button, 1 x Clear CMOS Jumper, 1 x TPU Switch, 1 x EPU Switch, 1 x Power-on Button, 1 x Reset Button

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	6, Intel Z77 Chipset, ASMedia USB 3.0
eSATA Ports, Controller	2, ASMedia PCIe SATA
HDMI Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	2

General Features

Overclocking	Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
Support CDs	Drivers, ASUS Utilities, ASUS Update
Bundled Software	Anti-virus Software (OEM Version)
OS Support	Windows XP and Above
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) Memory Information
Features	Supports Intel 22 nm CPU, Supports Intel 32 nm CPU
Advanced Technologies	Intel Turbo Boost Technology 2.0, Clear Video HD Technology, Intel Smart Response Technology, Intel Rapid Start Technology
Advanced Features	ASUS UEFI BIOS EZ Mode, USB BIOS Flashback, AI Suite II, Ai Charger+, USB Charger+, Anti-surge, Network iControl, USB 3.0 Boost, Disk Unlocker, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design

Limitations

External Graphics Card Required (Not Included in the Box)

Dimensions

244 x 305 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts 1800-2090-365 for Support
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage / dysfunction caused by improper handling / usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on The Location)

Ratings & Reviews

★

10 Ratings &

2 Reviews

5★
4★
3★
2★
1★

Awesome!

Awesome board for Core i7 Processors :)

Excellent feature set,If you are looking for a LGA 1155 Based motherboard,look no further!

Wifi+Bluetooth 4.0 capabilities onboard!

Lots of SATA and peripheral ports to add up all the devices you will ever need.Supports 32 GB of RAM!

Puneet Agrawal

Jun, 2012

Permalink

Report Abuse

Please bring the product back...

I need to buy this stuff...please bring the product back..please. Please bring it back soon...Missed the product..Please bring it back flipkart...Its a request...Please!!!

this is the best motherboard till date...an awesome technology and very stable board...

Thanks for bringing the product back flipkart

Dr Arnab Naha

Sep, 2013

Permalink

Report Abuse
