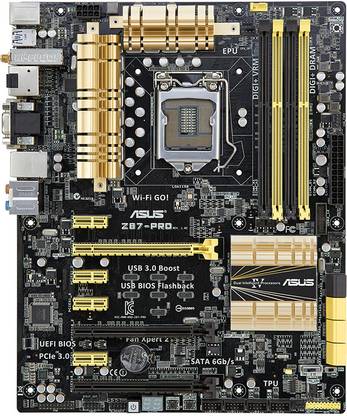

    Asus Z87 Pro Motherboard

    Asus Z87 Pro Motherboard

    Price: Not Available
    Currently Unavailable
    3 Years Asus India Warranty and Free Transit InsuranceKnow More
    Highlights
    • Intel Z87
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    Back Panel Ports
    USB 3.0 Ports, Controller
    • ASMedia, 6, Intel Z87
    HDMI Ports
    • 1
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    In The Box
    Sales Package
    • Motherboard, Installation Guide, CD, Shield
    General Features
    Overclocking
    • Asus C.P.R.(CPU Parameter Recall)
    Support CDs
    • Drivers, Asus Utilities, EZ Update
    Bundled Software
    • Anti-virus Software (OEM Version)
    OS Support
    • 7, Windows: XP, Vista, 8
    BIOS
    • 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, Asus EZ Flash 2, Asus CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen, F3 Shortcut Functions and Asus DRAM SPD (Serial Presence Detect) Memory Information
    Features
    • Supports Intel Extreme Memory Profile (XMP), Supports Intel 22 nm CPU, Fan Xpert 2 - Fan Control, Supports Upto 3 Displays Simultaneously, 4-way Optimization
    Advanced Technologies
    • Supports Intel Turbo Boost Technology 2.0, Intel Smart Response Technology, Intel Smart Connect Technology, Intel Rapid Start Technology, Intel InTru 3D Technology, Intel Quick Sync Video Technology, Intel Clear Video HD Technology, Asus USB 3.0 Boost Technology
    Advanced Features
    • Asus Dual Intelligent Processors 4, Asus 5X Protection, Asus EPU, Asus Digital Power Design, Asus Wi-Fi GO, Asus Exclusive Features, Asus Quiet Thermal Solution, Asus EZ DIY, Asus Q-Design, Polymer Capacitors
    Warranty
    Domestic Term
    • 3 Years ASUS India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Years Asus India Warranty and Free Transit Insurance
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 2666(OC) MHz, 2200(OC) MHz, 2800(OC) MHz, 2500(OC) MHz, 1600 MHz, 1866(OC) MHz, 2600(OC) MHz, 2000(OC) MHz, 2133(OC) MHz, 2400(OC) MHz, 2933(OC) MHz, 1333 MHz, 3000(OC) MHz, 1800(OC) MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Limitations
    • The Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Hyper DIMM Support is Subject to the Physical Characteristics of Individual CPUs, 2 x SATA 6Gb/s Port (ASMedia ASM1061 Controller): These SATA Ports are for Data Hard Drivers Only, ATAPI Devices are Not Supported
    Dimensions
    Dimensions
    • 244 x 305 mm
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1150
    Compatible Processors
    • Intel 4th Generation Core i5 Processor, Intel Pentium Processor, Intel 4th Generation Core i3 Processor, Intel 4th Generation Core i7 Processor, Intel Celeron Processor
    Chipset
    • Intel Z87
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • Yes
    External Graphics Card Support
    • Yes
    Multi GPU Support
    • Yes, NVIDIA Quad-GPU SLI Technology, AMD Quad-GPU CrossFireX Technology, AMD 3-way CrossFireX Technology
    Storage
    SATA 6 Gb/s
    • Intel Z87, ASMedia ASM1061
    RAID Controller
    • Intel Z87
    RAID Configurations
    • 0, 1, 5, 10
    Expansion Slots
    PCIe x1 Slots, Generation
    • 2, 4
    PCIe x16 Slots, Generation
    • 1, 3
    General
    Brand
    • ASUS
    Model ID
    • Z87 Pro
    Key Features
    • ATX Form Factor, LGA 1150 Socket Type, Maximum 32 GB DDR3, Dual Channel DIMM Memory, 4 Memory Slots, 1 HDMI Port, Intel Z87 Chipset
    Connectivity
    Ethernet Controller
    • Intel I217 V
    Ethernet Features
    • 1 x Gigabit LAN Controller, Intel LAN Dual Interconnect Between the Integrated LAN Controller and Physical Layer (PHY)
    Wireless and Bluetooth
    • 1 x Asus Wi-Fi GO! Module (Wi-Fi 802.11 a/b/g/n), Supports Dual Band Frequency 2.4/5 GHz and Bluetooth v4.0/ 3.0 + HS
    Audio
    Audio Codec
    • Realtek ALC1150
    Audio Channels
    • 8
    Audio Features
    • HD Audio, Absolute Pitch 192 KHz/ 24-bit True BD Lossless Sound, BD Audio Layer Content Protection, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, DTS Ultra PC II, DTS Connect, High Quality 112 dB SNR Stereo Playback Output (Line-out at Rear) and 104 dB SNR Recording Input (Line-in)
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 8
    USB 2.0 Headers
    • 4
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 4 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x MemOK! Button, 1 x Clear CMOS Jumper, 1 x TPU Switch, 1 x CPU OPT Fan Connector, 1 x DRCT Header, 1 x DirectKey Button, 1 x USB BIOS Flashback Button, 1 x 24-pin EATX Power Connector, 1 x Power-on Button, 1 x EPU Switch, 1 x System Panel, 1 x S/PDIF Out Header
    Ratings & Reviews
    4.8
    ★
    26 Ratings &
    4 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 22
    • 4
    • 0
    • 0
    • 0
    5

    Good One

    Yes this is good mobo with my Intel 3.5 GHz LGA1150 4770K i7 4th Generation Processor.
    But there is a better one in market Z97. Get Z97, it supports 5th Gen processors(yet to come) and fast SSD, and some others fixes too.

    So Z97 best fit with 4790K has better OC's and temps control.

    So go for this. Go for latest technology, there is hardly any price difference.


    BTW Z87 Pro is awesome mobo a good one.
    I do recommend it but please go for the latest one I discussed above.

    Hope this info is ...
    READ MORE

    Munish Walia

    Certified Buyer, Ghaziabad

    Jul, 2014

    3
    0
    Permalink
    Report Abuse
    4

    A perfect motherboard for hard core gaming applications

    Well designed motherboard in all respects. Built-in Wi-Fi, Graphics Card & Audio makes it one of the best in its class. Perfect choice for serious gaming enthusiasts .
    READ MORE

    GOPAN NAIR

    Certified Buyer, Bangalore

    Apr, 2014

    0
    0
    Permalink
    Report Abuse
    5

    best for i7 4770k

    it is the best for i7 4770k. even better than its more expensive alternatives. buy more expensive one only if u need to do liquid cooling that causes condensation. even then i dont think it will cause any trouble.

    great functionality. great price. overall a great mb.
    READ MORE

    Bhang Bose

    Certified Buyer, Bhubaneshwar

    Mar, 2014

    0
    0
    Permalink
    Report Abuse
    5

    Best Performance !!

    After detailed research i found the best motherboard for my i7 4770K Proccessor.

    High Performance with Advance features.
    READ MORE

    Praful Sojitra

    Certified Buyer, Opposite Mtnl Telephone Exchange

    Jan, 2014

    0
    0
    Permalink
    Report Abuse
    +
