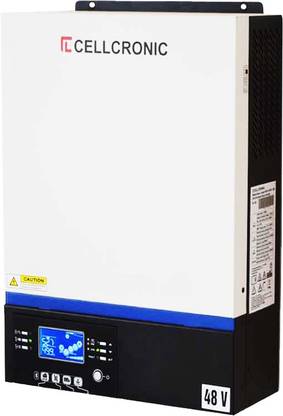

Cellcronic Axpert VM 3 solar hybrid inverter 5kw-48v off-grid Pure Sine Wave Inverter

Price: Not Available

Currently Unavailable

Warranty

1 year

Highlights

Backup Time: 12 hrs

Description

Axpert VM III is a third generation off-grid hybrid inverter which comes with company fitted battery wire and AC DC Distribution Box. It’s detachable LCD control module can be turned to remote panel. It’s also integrated with Bluetooth interface ready for mobile monitoring and support USB on-the–go function to facilitate data upload/download with pendrive. Battery independency design enhances this inverter to operate without battery connected. Accept high PV voltage range (120~450vdc).

Specifications

In The Box

75000

General

Brand	Cellcronic
Model Number	Axpert VM 3 solar hybrid inverter 5kw-48v
Battery Included	No
Back Up Time	12 hrs
Load Options	5000
Type	Pure Sine Wave Inverter
Model Name	off-grid
Mode Type	atomatic
Material	steel
Fixture Type	wall mounted
Technology Used	transformer less
Solar Power Compatible	Yes

Output Features

Efficiency	99 %
Output Voltage	220~240
Output Frequency	50
Overload	5200
AC Output Types	220V, 230V, 240V
Output Power	5000 W
Change Over Time	10 ms
Change Over Voltage	230
Surge Rating	10000 VA

Input Features

Input Voltage	170~260
Input Frequency	50
Low Cut Input Voltage	42
Low Cut Recovery Input Voltage	42
High Cut Input Voltage	58.4
High Cut Recovery Input Voltage	63

Battery Features

Recharge Time	2 hours
Number of Batteries	min. 4 , max. 40
Battery Boost Voltage	58.4
Battery Voltage	48v
Battery Charging Current	140A
Replacement Battery	No
Replacement Battery Type	Lead Acid, lithium ion
Compatible Battery Types	Lead Acid, Lithium ion
Other Battery Features	equalizer

Environmental Features

Storage Temperature	-15 to +60
Operating Temperature	-10 to +50

Convenience Features

Emergency Power Off	Yes
Display Type	led

Dimensions

Width	30 cm
Height	40 cm
Depth	11 cm
Weight	9.85 kg

Additional Features

Certification	IEC 61683, IEC, EN 62109 certificate
Corrosion Resistant	Yes

Warranty

Warranty Summary	1 year
Service Type	offsite
Covered in Warranty	all parts
Not Covered in Warranty	errpr 03, physical damage
