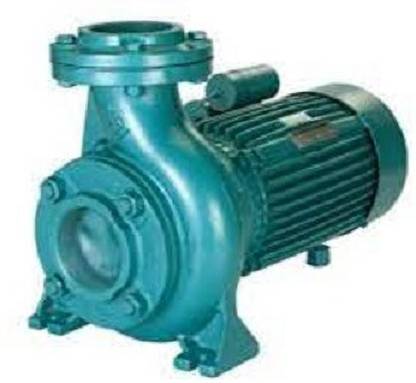

CRI ACM 60 Centrifugal Water Pump (0.5 hp)

Price: Not Available

Currently Unavailable

Warranty

Manufacturar Warranty

Highlights

Single-phase Water Pump
In-built Thermal Over Load Protector
Power Rating: 0.37 kW
Power Supply: 50Hz, AC Supply
Motor Power: 0.5 hp

Description

C.R.I. Centrifugal Monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor.

Specifications

Warranty

Warranty Summary	Manufacturar Warranty
Covered in Warranty	Manufacturing Defaults
Not Covered in Warranty	Warranty does not cover any external accessories, Damage caused to the pump due to improper installation and run dry by customer.

In The Box

MOTOR,Warranty card,User Manaul

General

Brand	CRI
Model Name	ACM 60
Type	Centrifugal
Usage Type	Domestic
Applications	Domestic Irrigation Farms Gardens Industry Civil Applications
Flow Rate	68.8 Lpm
Total Head	41 m
Net Quantity	1

Additional Features

Key Features

*High operating efficiency resulting in lower power consumption *Good suction lift characteristics *Inbuilt thermal over load protector in all single-phase pumpsets upto 1.5HP *Specially designed for wide voltage operation *Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life *Back pull-out design for easy servicing & repair

Dimensions

Weight

10 kg

Power Features

Phase	Single-phase
Thermal Over Load Protector	Yes
Power Supply	50Hz, AC Supply
Power Rating	0.37 kW
Motor Power	0.5 hp
