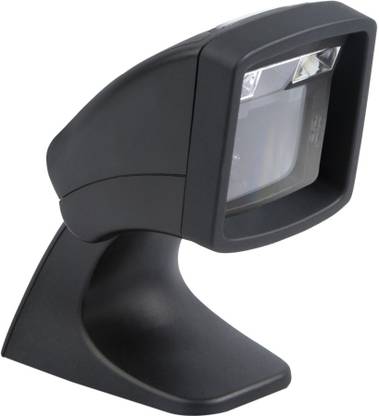

Datalogic Magellan 800i Laser Barcode Scanner (Stationary)

? Aggressive performance on 1d increases productivity ? Powerful Advanced Data Editing for custom host output ? No moving parts for improved reliability ? IllumixTM intelligent illumination technology for reading bar codes from mobile phones or laptops ? Ergonomically designed for hands-free or handheld operation ? Small footprint for easy installation into space constrained applications ? Precise imaging scan volume eliminates misreads caused by stray laser scan lines ? Configurable image capture mode to optimize host upload time ? Checkpoint Systems EAS and Interlock compatible Decoding Capability 1D / Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBarTM linear codes Stacked Codes GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417 Electrical Current Operating (Typical): < 350 mA Standby/Idle (Typical): < 250 mA Input Voltage 5 VDC (+/- 10%) Environmental Ambient Light Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux Drop Resistance Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface ESD Protection (Air Discharge) 20 kV Humidity (Non-Condensing) 5 - 95% Particulate and Water Sealing IP52 Temperature Operating: 0 to 40 ?C / 32 to 104 ?F Storage/Transport: -40 to 70 ?C / -40 to 158 ?F Interfaces Interfaces RS-232; USB: OEM USB, USB COM, USB HID Keyboard, USB TEC Optional Features EAS Features Checkpoint Systems: Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models. Sensormatic: Good Read Acknowledgement. Value Added Features Advanced Label Editing; Diagnostic Reporting; Host Download Physical Characteristics Colors Available Black; White; Other colors and custom logo options are available for minimum quantity purchase. Dimensions 15.1 x 7.6 x 10.9 cm / 5.9 x 3.0 x 4.3 in Weight 306.2 g / 10.8 oz Reading Performance Image Capture Optional: 752 x 480 pixels; Graphic Formats: JPEG Print Contrast Ratio (Minimum) 25% Reading Angle Pitch: +/- 60?; Roll (Tilt): 0 - 360?; Skew (Yaw): +/- 60? Reading Indicators Beeper (Adjustable Tone and Volume); Good Read LED Resolution (Maximum) 0.130 mm / 5 mils Reading Range Typical Depth of Field Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. 1D / Linear Codes 5 mils: 0 to 2.5 cm / 0 to 1.0 in 7.5 mils: 0 to 8.2 cm / 0 to 3.2 in 10 mils: 0 to 12.7 cm / 0 to 5.0 in 13 mils UPC: 0 to 15.2 cm / 0 to 6.0 in
