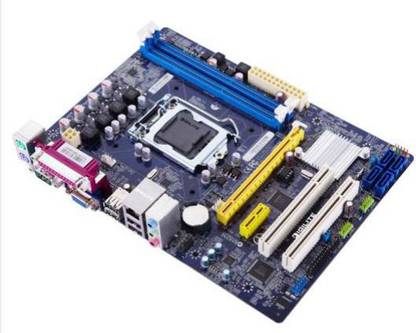

    DIGILITE DL-H61MXP LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard

    DIGILITE DL-H61MXP LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    3 Years Digilite India Warranty and Free Transit Insurance
    Highlights
    • Intel H61
    • Data Rate DDR3
    • Maximum RAM Capacity 16 GB
    • Form Factor: Micro-ATX
    Specifications
    In The Box
    Sales Package
    • Motherboard, SATA Cables, Rear I/O Panel Shield, SATA Cable and Supporting CD Software
    General
    Brand
    • DIGILITE
    Model ID
    • DL-H61MXP
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Ivy Bridge Processors, Intel Sandy Bridge Processors
    Chipset
    • Intel H61
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 16 GB DDR3 Dual Channel DIMM
    Memory Frequency
    • 1333 MHz, 1066 MHz
    Storage
    SATA 3 Gb/s
    • Intel H61
    Audio
    Audio Channels
    • 5.1
    Audio Features
    • HD Audio
    Connectivity
    Ethernet Controller
    • Gigabit Lan
    Expansion Slots
    PCI Slots
    • 2
    PCIe x1 Slots, Generation
    • 1
    PCIe x16 Slots, Generation
    • 1, 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 2
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 4 x Serial ATAII Connectors, 1 x 4-pin CPU Fan Connector, 1 x 4-pin System Fan Connector, 1 x Front Audio Header, 1 x Intruder Alarm Headers, 1 x CLR_CMOS Header, 1 x Speaker Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 6
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 1
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    Other Ports
    • 1 x Parallel Port, 1 x COM Port
    General Features
    BIOS
    • 32 MB Flash EEPROM w/ LAN Boot PnP, ACPI, WfM, DMI 2.0
    Features
    • Dimensions: 243.84 x 177.8 mm, Standards/Manageability: USB2.0, DMI 1.5
    Advanced Features
    • Supports Intel 22/32 nm Hi-K CPU
    Warranty
    Warranty Summary
    • 3 Years Digilite India Warranty and Free Transit Insurance
