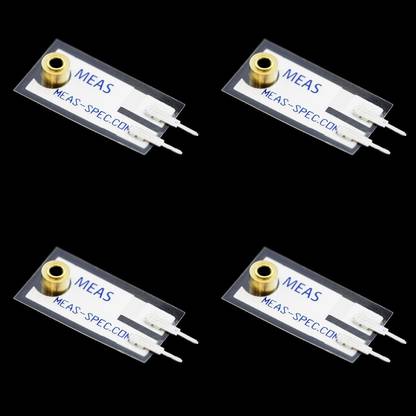

Flyrobo (4 pc) Piezo Vibration Sensor - Large with Mass - - Electronic Components Electronic Hobby Kit

Length: 3 cm Width: 1.3 cm Operating Temperature Range: 0 ~ 85 °C This basic piezo sensor from Measurement Specialties is often used for flex, touch, vibration, and shock measurements. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch. Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion. Multi-axis response can be achieved by positioning the mass off-center. The vibration sensor where the sensing element comprises a cantilever beam loaded by an additional mass to offer high sensitivity at low frequencies. Features: Laminated for higher voltage output Flexible PVDF Piezo Polymer Film Wide dynamic range 0.1" breadboard friendly leads Package Includes: 1 x Piezo Vibration Sensor - Large with Mass
