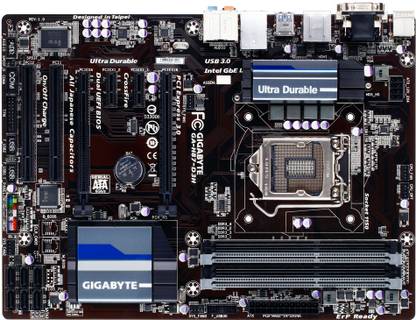

Gigabyte H87-D3H Motherboard

Price: Not Available

Currently Unavailable

Warranty

Please Contact 011-40525645 or Mail Us: support@amigointernational.biz in Case of Problems

Highlights

Specifications

In The Box

Sales Package

General

Brand	GIGABYTE
Model ID	H87-D3H

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel 4th Generation Core i5 Processor, Intel Pentium Processor, Intel 4th Generation Core i3 Processor, Intel 4th Generation Core i7 Processor, Intel Celeron Processor
Chipset	Intel H87
Chipset Manufacturer	Intel

Memory

Storage

RAID Configurations

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD CrossFire Technology

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	HD Audio, Support for S/PDIF In, Support for S/PDIF Out

Connectivity

Ethernet Features

Expansion Slots

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Clear CMOS Jumper, 1 x S/PDIF In Header, 1 x Serial Port Header, 1 x Water Cooling Fan Header, 1 x S/PDIF Out Header

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	4
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Hardware Monitoring	System Voltage Detection, CPU/System Temperature Detection, CPU/CPU OPT/System Fan Speed Detection, CPU/System Overheating Warning, CPU/CPU OPT/System Fan Fail Warning, CPU/CPU OPT/System Fan Speed Control
Bundled Software	Norton Internet Security (OEM Version)
OS Support	Windows: 7, Server 2008 R2 (SP1), 8, Server 2012 (64-bit)
BIOS	2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Features	Ultra Cool, Intel Small Business Advantage, IR Digital Power Design, Ultra Safe, EasyTune, HDMI 1.4a, Gigabyte OPT Fan Support, High ESD Protection for USB and LAN, 15 Gold Plated CPU Socket, Gold Plated CPU Socket, Ultra Performance, iTE I/O Controller Chip, One Fuse per USB Port
Advanced Technologies	Ultra Durable 5 Plus Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology, On/Off Charge Technology
Advanced Features	Support for Q-Flash, Support for Xpress Install, Support for APP Center, EasyTune, EZ Setup, USB Blocker, Support for ON/OFF Charge

Limitations

The PCIEX4 Slot Shares Bandwidth with all PCI Express x1 Alots, All PCI Express x1 Slots will Become Unavailable when a PCIe x4 Expansion Card is Installed, When Installing a x8 or Above Card in the PCIEX4 Slot, Make Sure to Set PCIE Slot Configuration in BIOS Setup to x4, Fan Speed Control Function is Supported will Depend on the Cooler You Install, Available Applications in APP Center may Differ by Motherboard Model, Supported Functions of each Application may also Differ Depending on Motherboard Specifications, Due to a Windows 32-bit Operating System Limitation, When more than 4 GB of Physical Memory is Installed, The Actual Memory Size Displayed will be Less than the Size of the Physical Memory Installed

Dimensions

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	Please Contact 011-40525645 or Mail Us: support@amigointernational.biz in Case of Problems
Warranty Service Type	Carry In
