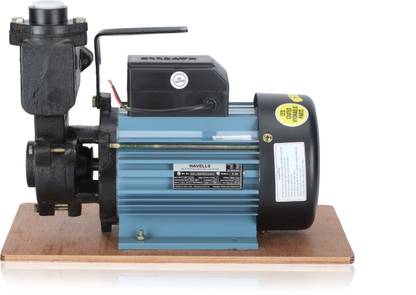

HAVELLS S1.5W-1.5HP 1PH MINI MONOBLOCK PUMP CENTRIFUGAL 1.5HP Centrifugal Water Pump  (1.5 HP)

Suitable for Single phase supply Applications Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation Operating water temperature Ambient temperature Maximum working pressure 5.6 kg/cm² High suction with self priming up to 8 m Low power consumption Yes MOTOR FEATURES Pipe size 25 mm x 25 mm (2.5 cm x 2.5 cm) Motor speed 2900 Revolution per minute Motor body High-quality aluminium die casting Motor stator CRC prossed grade stampings Winding type Copper winding Direction of rotating Anti-clockwise when viewed from driving end Dynamically balanced rotor Yes PUMP FEATURES Pump casing Cast iron Impeller Forged brass Shaft Stainless Steel (SS-410) POWER DETAILS Rated power input 1.1 kW Voltage operating range 180 V to 240 V Rated frequency 50 Hz DISCHARGE IN LITRE HOUR AT VARIOUS HEIGHTS 18 metre in LPH 4700 21 metre in L 1570 24 metre in L 1360 27 metre in L 1080 33 metre in L 610 34 metre in L 490 DIMENSIONS AND WEIGHT Gross weight 19.5 Kg Packaging dimensions WxHxD 42.5 cm x 23.5 cm x 32.0 cm Cable length and Size 0.21 m & 0.75 SQ. mm Weight 16.7 kg ACCESSORIES Power supply cable Yes SALES PACKAGE (S) Net contents 1 pumpset, 1 instruction manual, 1 warranty card, 1 Strainer SAFETY FEATURES In built thermal overload protector Yes MOTOR TYPE Motor insulation class Class F
