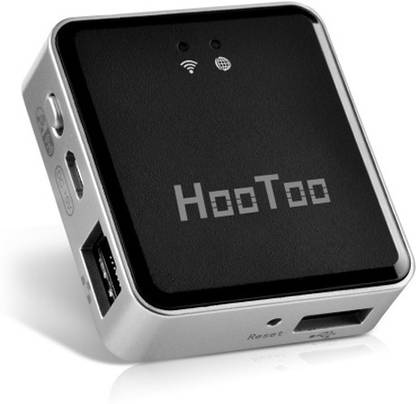

HooToo TripMate Nano HT-TM02 Wireless N Pocket Wireless Router 2.4 GHz 720 Mbps Wifi Speed Single Band Internal Antenna Ethernet (Cable Broadband)  (Black)

Travel Router: Instantly Convert A Wired Network To Wireless With Easy Setup. Also Can Bridge An Existing Wireless Network, Create Your Own Secure Wi-Fi Network.

Free Up Space: Backup Your Photos And Videos From Your Iphone, Android Phones, Ipad Or Other Mobile Devices To Attached Usb Flash Drive, Hard Disk. Free Up Space On Your Phones. Lightweight And Small: Powered By Usb For Extreme Portability, Which Is Only Weighted 1oz.

Features:

• Instantly Create A Wireless Network (Through Ap/Router/Bridge Mode)

• Network Attached Storage Enabled, Easy Sharing With Usb Storage Devices

• Download Apps To Share Photos/Movies/Music From Ios And Android Devices

Specifications:

• Cpu Model/Frequency: Ralink Rt5350/Mips24kec 360mhz

• Wi-Fi: 802.11b/G/N, 2.4ghz

• Speed: 720mbps For 20mhz, 150mbps For 40mhz

• Flash Model/Capacity:En25q64-104wip/ 8mbyte Spi Flash

• Sdram Model/Capacity:M12l2561616a-6tg (Sdram) / 32mb (256mbit)

• Wan Port: Rj45 Ethernet, 100mbit/S

• Switch Button:

Wired Connection:Set Up Your Tripmate As A Media-Sharing Device, Ap,Router,Bridge

Wireless Connection: Set Up Your Tripmate As A Media-Sharing Device,Bridge

• Indicator:

Wi-Fi Led:

Blinking Green: System Loading

Solid Green: System Loaded

Wan Led:

Solid Blue: Tripmate Is Connected To The Internet

Off: No Internet Connection Available

• Reset Button: Factory Default Reset Button

• Antenna: 2db (Wi-Fi Component), 14dbi (Main Chip)

• Usb Host Interface:Usb 2.0:Support Usb Flash/Hdd

• Input Micro Usb:5v/1.0a

• Operating/Storage Temp.: 5℃ - 40℃ / 0℃ - 60℃

• Operating/Storage Humidity: 5% - 90% (Non-Condensing)

• Dimension: 56mm (L) X 51mm (W) X 17mm (H)

• Weight:2.8oz

• Certificate: Ce, Rohs, Fcc

Package Include1 X Hootoo Tripmate Nano, 1 X Quick Installation Guide, 1 X Usb Cable

• Please Download App First From Ios Or Android App Store Before Streaming Nas

• Create A Wireless Connection Through Ht-Tm’S Ap/Router/Bridge Mode To Have Internet Access. Otherwise You Can Only Use It To Streaming Your Nas .

Definition:

• Ap Mode: The Router Is Connected To A Wired Network And Transforms The Wired Internet Access Into Wireless So That Multiple Devices Can Share The Internet. It Works As An Access Point

• Router Mode: The Router Is Connected To A Dsl Or Cable Modem And Works As A Regular Router.

• Bridge Mode: The Router Borrows Existing Wireless Internet And Broadcasts It Using A Different Network Name (Ssid) And Password. This Application Can Create Two Individual Networks For Two Groups Of Users Sharing One Internet.
