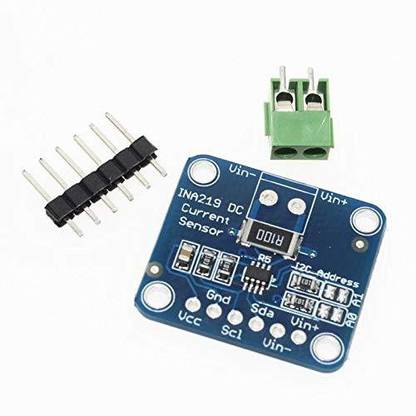

IDUINO CJMCU - 219 INA219 I2C interface Bi-directional current/power monitoring sensor module Electronic Components Electronic Hobby Kit

DESCRIPTION CJMCU-219 module is an I2C interface with a drift, bi-directional current/power monitor integrated circuit (IC), and further, expand the energy-saving electronic products TI camp. INA219 with the industry's highest accuracy and smallest size, not only to monitor the voltage drop across a shunt resistor on the sensing shunt supply voltage, while also computing power. The device is available in a SOT23 package, providing small digital current sensing servers, laptops, power supplies, battery management and automotive and telecommunications equipment. INA219 at -40C to + 1% can be achieved within the maximum error accuracy 85C temperature range, the maximum offset is 100 uV. The high-precision products combine the advantages of 12-bit resolution, as much as possible to help customers reduce the pressure drop on the shunt resistor, thereby minimizing power loss and power consumption and save board space. The device can be sensed bus voltage range of 0 V to +26 V.
