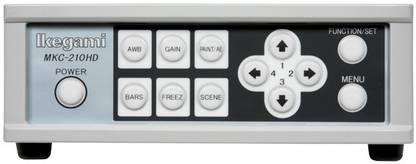

Ikegami MKC-210:1CMOS FULL HD Medical Grade Camera for Microscopes Digital Electrotherapy Device  (MKC-210)

Ultra Compact Camera-Head The camera-head is extremely small (W31xH31xD36mm) and lightweight. High Resolution and High Sensitivity The MKC-210HD employs a 2.2Mega pixel 1/3-inch CMOS Sensor to provide 900 lines of high resolution video image, high S/N ratio of 50dB and high sensitivity of F7/2000lux. Digital Processing Video signal processing is done in the same signal process as Ikegami’s broadcast cameras to constantly achieve the same high level of quality and reliability. Various Types of Video Signal Outputs Equipped with several video signal outputs such as digital HD signal (HD-SDI), DVI digital signal (1920x1080), NTSC/PAL composite signal (VBS) and S-VIDEO to deal with various types of signals. Adding one more channel of DVI output is available as an option. Automatic Electronic Shutter System (Shutter Iris) Electronic shutter (Shutter Iris) functionality maintains the optimized performance in a variety of situations. Automatic Iris Control Accurate iris control is possible with Auto-iris camera adaptors and Auto-iris lenses. * This is used for the shadowless lamp system. Picture Freeze Pressing the Freeze button on the CCU panel will hold the current image. This allows the detailed inspection of situations where the motion could hide the details. The function is also available with the optional foot pedal. Scene File 4 scene files are provided to keep pre-set memories for functions and controls. It is easily possible to call suitable programs to adapt the conditions for taking photographs by this function. Flip and Turn Function Digital capture means that captured images can be flipped horizontally and vertically by the digital processing to correct TV images against the optical inversion caused by optical instruments. An optional foot pedal is required to allow an external operation for this function.
