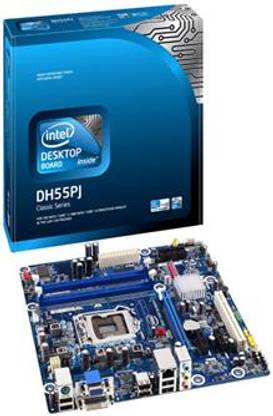

    Intel DH55PJ LGA 1156Socket Micro-ATX Intel H55 Chipset DDR3 Motherboard for Desktop

    Intel DH55PJ LGA 1156Socket Micro-ATX Intel H55 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel H55
    • Data Rate DDR3
    • Maximum RAM Capacity 8 GB
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 6
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    General Features
    Hardware Monitoring
    • Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers using PWM control 4-pin headers for prO.Cessor, front, and rear fans 4-wire and 3-wire (linear) fan speed control support for front and rear fans Support for Platform Environmental Control Interface (PECI)
    BIOS
    • Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 8 GB DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1333 MHz
    ECC Support
    • No
    Limitations
    • Requires a PrO.Cessor with Intel Graphics Technology
    Dimensions
    Dimensions
    • 243.84 x 243.84 mm
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1156
    Compatible Processors
    • Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium Series processors
    Chipset
    • Intel H55
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • No
    Multi GPU Support
    • No
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2, 2
    PCIe x16 Slots, Generation
    • 1, 2
    General
    Brand
    • Intel
    Model ID
    • DH55PJ
    Designed For
    • Desktop
    Key Features
    • Micro-ATX Form Factor, LGA1156 Socket Type, Intel H55, 2 Memory Slots, Maximum 8 GB DDR3, Dual Channel DIMM Memory, 3 USB 2.0 Headers
    Connectivity
    Ethernet Controller
    • Intel 82578DC
    Ethernet Features
    • 10/100/1000 Mbits/sec LAN subsystem
    Number of Printer Ports
    • 1
    Audio
    Audio Codec
    • Realtek ALC888S
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 3
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Serial Port Header, 1 x S/PDIF Header, 1 x Front Panel Audio Header
