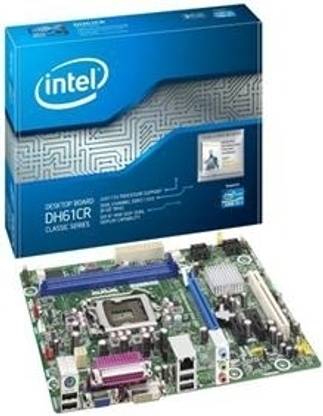

    Intel DH61CR LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard for Desktop

    Intel DH61CR LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel H61
    • Data Rate DDR3
    • Maximum RAM Capacity 8 GB
    • Form Factor: Micro-ATX
    Specifications
    General
    Brand
    • Intel
    Model ID
    • DH61CR
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium Series processors
    Chipset
    • Intel H61
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 8 GB DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1333 MHz
    ECC Support
    • No
    Graphics
    Integrated Graphics card
    • No
    Multi GPU Support
    • No
    Audio
    Audio Codec
    • Realtek ALC892
    Connectivity
    Ethernet Controller
    • Intel 82579V
    Ethernet Features
    • 10/100/1000 Mbits/sec LAN subsystem
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2, 2
    PCIe x16 Slots, Generation
    • 1, 2
    Internal I/o Headers
    SATA 1.5 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 3
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x S/PDIF Header, 1 x Front Panel Audio Header, 1 x Serial Port Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    General Features
    Hardware Monitoring
    • Hardware monitoring through the Nuvoton Super I/O controller Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers Two fan sense inputs used to monitor fan activity Fan speed control
    BIOS
    • Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Limitations
    • Requires a PrO.Cessor with Intel Graphics Technology
    Dimensions
    Dimensions
    • 198.12 x 243.84 mm
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
