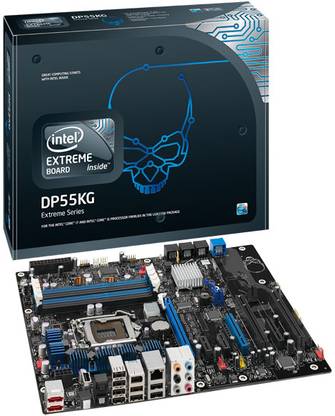

    Intel DP55KG LGA 1156Socket ATX Intel P55 Chipset DDR3 Motherboard for Desktop

    Intel DP55KG LGA 1156Socket ATX Intel P55 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Highlights
    • Suitable For Desktop
    • Intel P55
    • Data Rate DDR3
    • Maximum RAM Capacity 16
    • Form Factor: ATX
    Specifications
    General
    Brand
    • Intel
    Model ID
    • DP55KG
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1156
    Compatible Processors
    • Intel Core i5-700 PrO.Cessor Series, Intel Core i7-800 processors Series
    Chipset
    • Intel P55
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 16 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1600 MHz, 1333 MHz
    ECC Support
    • No
    Graphics
    Integrated Graphics card
    • No
    Multi GPU Support
    • Yes, ATI CrossfireX, NVIDIA SLI
    Audio
    Audio Codec
    • Realtek ALC889
    Connectivity
    Ethernet Controller
    • Intel 82578DC
    Ethernet Features
    • 10/100/1000 Mbits/sec LAN subsystem
    Number of FireWire Ports
    • 1
    Wireless and Bluetooth
    • Infrared Unit and Yes
    Expansion Slots
    PCI Slots
    • 2
    PCIe x1 Slots, Generation
    • 2
    PCIe x4 Slots, Generation
    • 1
    PCIe x8 Slots, Generation
    • 1, 2
    PCIe x16 Slots, Generation
    • 1, 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 8
    USB 2.0 Headers
    • 4
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Rear Chassis Fan Header, 1 x Front Chassis Fan Header, 1 x Front Panel Audio Header, Onboard Power Button, 1 x S/PDIF Out Header, 1 x Auxillary Chassis Fan Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 8
    eSATA Ports, Controller
    • 2
    IEEE 1394a Ports
    • 1
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports), 1 (S/PDIF Out Ports)
    RJ-45 Ethernet Jacks
    • 1
    General Features
    Hardware Monitoring
    • Hardware monitoring and fan control ASIC Heceta 6P Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Three fan headers using PWM control Two fan sense inputs used to monitor fan activity Fan speed control using voltage control for 4-pin fan headers (prO.Cessor, front and rear chassis) with selectable support in BIOS for 3 wire fans Support for Platform Environmental Control Interface (PECI)
    BIOS
    • Intel BIOS resident in the SPI Flash device Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
    Limitations
    • External Graphics Card required (not included in the box)
    Dimensions
    Dimensions
    • 243.84 x 304.8 mm
    Warranty
    Domestic Term
    • 3 Years Intel India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
    Covered in Warranty
    • Manufacturing Defects / Dead on Arrival
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
