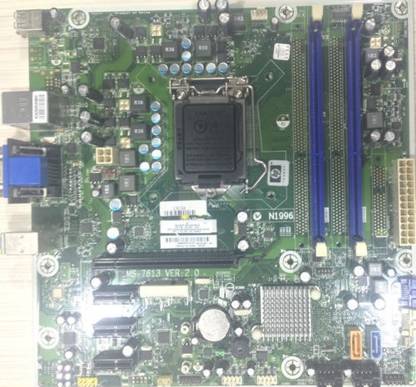

Intel MS-7613 (Iona-GL8E) LGA 775Socket Micro-ATX Intel H57 Chipset DDR3 Motherboard for Desktop

Motherboard description Manufacturer's motherboard name: MS-7613 HP/Compaq name: Iona Form Factor Micro-ATX: 24.4 cm (9.6 in) x 24.4 cm (9.6 in) Chipset Intel H57 Express Front-side bus speed 2.5 GT/s Processor upgrade information Motherboard supports the following processor upgrades: Intel Core i7-8xx (Lynnfield core) Intel Core i5-7xx (Lynnfield core) Intel Core i5-6xx (Clarkdale core) Intel Core i3-5xx (Clarkdale core) NOTE: Maximum processor core frequency <= 2.93GHz Memory upgrade information Memory upgrade information: Supports DDR3 DIMMs only Dual channel memory architecture Four DDR3 DIMM (240-pin) sockets DIMM types: PC3-10600 (DDR3-1333) PC3-8500 (DDR3-1066) Non-ECC memory only, unbuffered Supports up to 16 GB on 64-bit PCs Maximum memory only if using 4GB DDR3 DIMM modules. NOTE: 32-bit PCs can only address less than 4.0 GB of memory. This motherboard is not planned for use with a 32-bit OS. Video Integrated Intel H57 *Integrated video is not available if a graphics card is installed. Integrated graphics using Intel H57 chipset (when compatible CPU is installed) Intel HD Graphics Audio Integrated Realtek ALC888S Audio Integrated High Definition audio Audio CODEC: ALC888S 6-channel high-definition audio AC97: no Networking LAN: Gigabit 10-Base-GT Technology: Realtek RTL8111DL 10/100 Mbps Data transfer speeds: up to 10/100/1000 Mbps Transmission standards: Gigabit 10-Base-GT Ethernet Expansion Slots One PCI Express x16 slot (for graphics card support) Three PCI Express x1 slots (for cards such as network, sound, or tv-tuner) One PCI Express x1 minicard socket I/O Ports Back I/O ports Figure : Back I/O panel USB ports: 2 S/PDIF optical output port IEEE 1394 port RJ45 LAN Video Graphics Adapter port Center/Subwoofer port (yellow orange) Rear Speaker Out port (black) Side Speaker Out port (gray) Line In port (light blue) Line Out port (lime) Microphone port (pink) DVI port USB ports: 4 Internal Connectors One CPU fan connector Four DIMM sockets One 24-pin ATX power connector One 4-pin ATX power connector Four SATA connectors Six USB headers, supporting 8 USB connections WLAN card LED connector Clear CMOS jumper Clear BIOS password jumper Front panel connector SPDIF out connector ROM Recovery 1394 connector Speaker Front panel audio connector One PCI-E x16 connector Three PCI-E x1 connectors One PCI-E Mini-Card connector One PC fan connector Motherboard layout Figure : layout Figure : Back I/O panel USB 2.0 ports 1 and 2. S/PDIF optical output port. This port connects an external audio device. IEEE 1394 port. This 6-pin IEEE 1394 port provides high-speed connectivity for audio/video devices, storage peripherals, PCs, or portable devices. LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN) through a network hub. Video Graphics Adapter port. This port is for a VGA monitor or other VGA-compatible devices. Center/Subwoofer port (yellow orange). This port connects the center/subwoofer speakers. Rear Speaker Out port (black). This port connects to the rear speakers on a 4-channel, 6-channel, or 8-channel audio configuration. Side Speaker Out port (gray). This port connects to the side speakers in an 8-channel audio configuration. Line In port (light blue). This port connects a tape, CD, DVD player, or other audio sources. Line Out port (lime). This port connects to headphones or a speaker. In 4-channel, 6-channel, and 8-channel mode, the function of this port becomes Front Speakers Out. Microphone port (pink). This port connects a microphone. DVI port. DVI is a standard for connecting computers to digital monitors and provides a pure digital video signal to a digital flat-panel display or projector. USB 2.0 ports 3, 4, 5, and 6. These four 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices. COMPATIBLE PROCESSORS: MODEL: HP MS-7613 LONA GL8E Processors (CPU) that will fit HP MS-7613 Lona GL8E motherboard socket LGA 1156/Socket H Core i3 Core i3-530 2.9GHz Core i3-540 3.06GHz Core i3-550 3.2GHz Core i3-560 3.3GHz Core i5 Core i5-650 3.2GHz Core i5-655K 3.2GHz Core i5-660 3.33GHz Core i5-661 3.33GHz Core i5-670 3.46GHz Core i5-680 3.6GHz Core i5-750 2.66GHz Core i5-750S 2.4GHz Core i5-760 2.8GHz Core i7 Core i7-860 Quad 2.80GHz Core i7-860S Quad 2.53GHz Core i7-870 Quad 2.93GHz Core i7-870S Quad 2.67GHz Core i7-875K Quad 2.93GHz Core i7-880 Quad 3.06GHz
