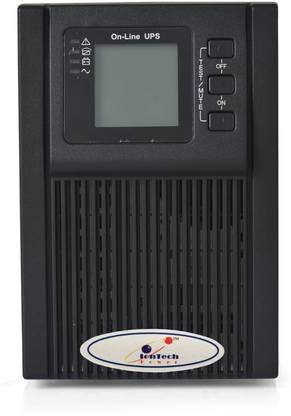

IONTECH POWER 3 KVA ONLINE UPS WITH 30 MINUTES BATTERY BACKUP TIME IP1102L06-26 230 V Online/double-conversion Rack-mount Model UPS with Overload Protection with Digital Display 4 Outlet Plugs

Price: Not Available

Currently Unavailable

Warranty

1 Yr Warranty on Electronics and 1 Yr Warranty on Battery

Highlights

Type: Online/double-conversion
Output Power Wattage: 800 W
Input Voltage: 230 V|Output Voltage: 230 V
Input Frequency: 50HZ|Output Frequency: 50HZ
W x H x D: 15 cm x 22 cm x 38 cm

Description

This IONTECH POWER Online up is a superb finding for your PC framework, networking equipment, security systems, and peripherals. Accentuating an incredible chip, this Online UPS is exceptionally trustworthy and shields your applications from electrical floods, voltage changes, and short circuits. Because of its 220 V to 240 V AC range and a power result of 230 V, the framework of this product can simultaneously safeguard up to 5 applications. Power Backup The independent framework offers a consistent inventory of force during abrupt power cuts to ensure that your essential assignments don't get slowed down, making it ideal for home and office.

Specifications

In The Box

ONLINE UPS, USER MANAUL

General

Brand	IONTECH POWER
Model Number	IP1102L06-26
Type	Online/double-conversion
Form Factor	Rack-mount Model
Model Name	3 KVA ONLINE UPS WITH 30 MINUTES BATTERY BACKUP TIME
Overload Protection	Yes
Overload Capacity	<125 for 10 min
Certification	BIS, RoHS Compliant, CE, ISO 9001, ISO 14001,ISO 45001
Technology Used	IGBT-PWM
Cold Start	Yes
Color	Black

Input Features

Input Voltage	230 V
Input Frequency	50HZ
Phase	SINGLE
Input Plug Type	Type D

Output Features

Output Voltage	230 V
Output Frequency	50HZ
Output Power Wattage	800 W
Efficiency	94-99 %
Output Waveform	Pure Sine Wave
Transfer Time	0 ms
Outlet Plug Type	D
Number of Outlet Plugs	4
Surge Protection	YES
Output Power Factor	0.8

Convenience Features

Digital Display	Yes
Display Type	LCD/LED
Display Indicator Functions	Input Voltage/Frequency, Output Voltage/Frequency, Battery Voltage, Load Watt/VA and %, Inverter Temperature, Operation Mode such as On Line, ON Batt or On Bypass
Audible Indicator Functions	Overload, Short Circuit, Low Battery, Input Over and Under Voltage, Fault Codes, Battery & Load Bar graph
Emergency Power Off	Yes
Serial Port	Yes
Low Battery Indicator	Yes
LED Indicator Function	Normal Operation, Bypass, Abnormal, Fault and Battery Mode

Dimensions

Width	15 cm
Height	22 cm
Depth	38 cm
Weight	12 kg
Cord Length	1 m

Battery Features

Battery Type	Sealed Maintenance Free Lead Acid VRLA
Hot-swappable Battery	No
Recharge Time	90% in 8 Hours
Number of Batteries	6
Battery Voltage	72 V
Battery Capacity	26 AH
Full Load Runtime	30 min
Half Load Runtime	40 min
Replacement Battery	Yes
Replacement Battery Type	Sealed Maintenance Free Lead Acid VRLA
Other Battery Features	Battery Voltage 12V

Environmental Features

Minimum Operating Temperature	0 degree C
Maximum Operating Temperature	45 degree C
Noise Level	55
Operating Humidity	0-95 %
Maximum Operating Altitude	1500 m
Storage Temperature	Min - 25 Max 70 degree C
Storage Humidity	0 - 95 %
Maximum Storage Altitude	2500 m
Other Environmental Features	Ups can operate upto 50 degree C

Warranty

Warranty Summary	1 Yr Warranty on Electronics and 1 Yr Warranty on Battery
Service Type	For any warranty related issues, please call to +91 6377995192 iontechpowerindia@gmail.com
Covered in Warranty	all faults except damage
Not Covered in Warranty	due to UPS damage
Domestic Warranty	1 Year
International Warranty	0 Months
