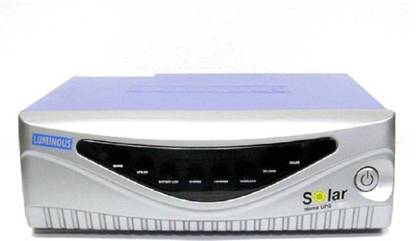

LUMINOUS HOME UPS 500VA/12V Luminous Home UPS 500va/12v Pure Sine Wave Pure Sine Wave Inverter

Price: Not Available

Currently Unavailable

2 Years On Site Service (Parts And Labour)Know More

Highlights

Backup Time: 8 hrs

Description

Luminous Solar Home UPS are hybrid UPS available in the range of 500va with inbuilt charge controllers with wide choice of pv modules from 400Wp. With unique feature of iSOT it saves 1.5 to 3 units per day thus substantial savings

Specifications

In The Box

1 Home Ups

General

Brand	LUMINOUS
Model Number	HOME UPS 500VA/12V
Battery Included	No
Back Up Time	8 hrs
Load Options	Maximum 400 Watt Bulb Load
Type	Pure Sine Wave Inverter
Model Name	Luminous Home UPS 500va/12v Pure Sine Wave
Mode Type	Automatic Pure Sine Wave
Material	Metal & Plastic
Fixture Type	Table Top
Technology Used	Pure Sinewave
Solar Power Compatible	Yes
Switch Type	Power Switch

Output Features

Efficiency	80% %
Output Voltage	220V+/-5V
Output Frequency	50Hz+/-0.5Hz
Output Power	400 W
Surge Rating	500 VA
Overload Rating	110%-150% for 30 Sec, 150%-180% for 10 Sec, 200% - Short Circuit
Other Output Features	Flexibility of use with all types of batteries

Input Features

Input Voltage	100V+/-10V
Input Frequency	50Hz+/-0.5Hz
Low Cut Input Voltage	100v+/-10v
Low Cut Recovery Input Voltage	110V+/-10V
High Cut Input Voltage	290c+/-10V
High Cut Recovery Input Voltage	280V+/-10V

Battery Features

Recharge Time	8 hours
Number of Batteries	1
Battery Charging Current	20 Amp
Compatible Battery Types	All Types of batteries
Compatible Battery Make	All Companies Batteries

Environmental Features

Storage Temperature	0-95% RH non-condensing
Operating Temperature	0-40 c
Other Environmental Features	Battery charging commences at 110 Volt mains voltage

Convenience Features

Emergency Power Off	Yes
Display Type	LED
Display Indicator Functions	Switch On Indication - Switch LED On, Ups On Indication - UPS On LED Steady, Low Battery pre-alarm indication - UPS On LED Stedy+battery low LED bliking, Low Battery Trip Indication - Low Batt. LED Steady
USB Charging Port	No
Protection Against	Short Circuit, Overload, High Temerature, battery low cut off
Cooling System	Fan Systems

Dimensions

Width	30 cm
Height	12 cm
Depth	30 cm
Weight	7 kg

Additional Features

Corrosion Resistant

Warranty

Warranty Summary	2 Years On Site Service (Parts And Labour)
Service Type	On Site
Covered in Warranty	2 Years Manufacturer Warranty
Not Covered in Warranty	Warranty Does Not Cover Any Damage And Burned
