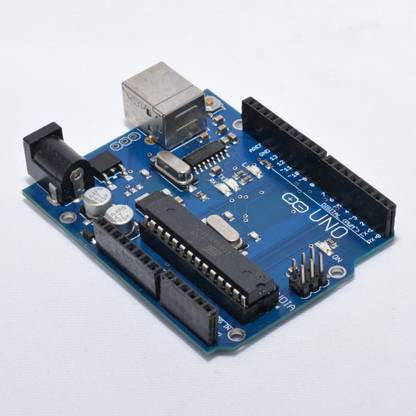

MAKER AND HACKER Arduino Uno R3 Compitible Board with ATmega328P CH340G, First Indian Board with Auto Power selection MADE IN INDIA Electronic Components Electronic Hobby Kit

ARDUINO UNO R3 DEVELOPMENT BOARD ATMEGA328P | CH340G | WITH USB CABLE Package Include: 1X ATMEL ATmega328P CH340G BOARD , USB Cable included Product description: Main changes from the older version: CH340G replace ATmega16U2 AUTO POWER SELECTION FEATURE ENABLED Technical Details: Microcontroller: ATmega328P Operating voltage: 5V Input Voltage (recommended): 7-12V (EXTERNAL), 5V(USB) Digital I/O Pins: 14 ( of which 6 provide PWM output) Analog Input Pins: 6 DC Current per I/O Pin: 40mA DC Current for 3.3V pin: 50mA Flash Memory: 32 KB (ATmega328P) of which 0.5KB used by bootloader SRAM: 2 KB (ATmega328P) EEPROM: 1 KB ( ATmega328P) Clock Speed: 16 MHZ USB Chip CH340G Usage Instructions: Click here for the driver software Before connecting the Board to your USB port: Download the “ch341ser.exe” file and run it. The software asks whether it can install the CH341SER.INF driver for the CH340 chip. Click INSTALL A Windows message asks whether the driver has installed correctly. Click YES. Connect your Board. From Control Panel, open Device Manager and Ports. If installed correctly you should see an entry “USB-SERIAL CH340 (COMXX) Install Arduino IDE Download Here http://arduino.cc/en/Main/Software Connect Board to Computer and open Arduino IDE. Select board as "Uno" in Arduino IDE. To Know the COM Port Goto Control Panel > Device Manager and see COM PORT. Start burning your programs.
