Metravi PRO 476 T-RMS AC/DC Clamp Meter - for Solar - 9999 digits, 35mm Ultra-thin Jaws Thermal Imager

Metravi PRO 476 T-RMS AC/DC Clamp Meter - for Solar - 9999 digits, 35mm Ultra-thin Jaws Thermal Imager

Share

Metravi PRO 476 T-RMS AC/DC Clamp Meter - for Solar - 9999 digits, 35mm Ultra-thin Jaws Thermal Imager

Be the first to Review this product
₹33,351
36,450
8% off
i
Available offers
  • Bank Offer10% instant discount on SBI Credit Card EMI Transactions, up to ₹1,500 on orders of ₹5,000 and above
    T&C
  • Bank Offer10% off up to ₹1,000 on all Axis Bank Credit Card (incl. migrated ones) EMI Txns of ₹7,490 and above
    T&C
  • Bank Offer10% off on BOBCARD EMI Transactions, up to ₹1,500 on orders of ₹5,000 and above
    T&C
  • EMI starting from ₹1,173/month
  • Warranty
    NA
    Delivery
    Check
    Enter pincode
      Delivery by5 May, Monday|Free
      ?
      if ordered before 2:59 PM
    View Details
    Services
    • NA
    • Cash on Delivery available
      ?
    Seller
    VISHAL2ENTERPRISES
    3.7
    • 7 Days Return Policy
      ?
  • See other sellers
  • Description

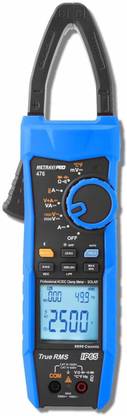

    NEW LAUNCH!! The Metravi PRO 476 T-RMS AC/DC Clamp Meter is an advanced device, especially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection, T-RMS measurements and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC Voltage and Current, Low-pass Filtered Voltage/Current, Surge Current, Peak Current, DC Power (using an external flexible clamp head), Resistance, Circuit Continuity, Diodes, Capacitance, and Temperature. The Metravi PRO 476 T-RMS AC/DC Clamp Meter’s versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterrupted power supplies (UPS), and large motors.
    Read More
    Specifications
    General
    Model Number
    • PRO 476 T-RMS AC/DC Clamp Meter - for Solar - 9999 digits, 35mm Ultra-thin Jaws
    Measurement Accuracy
    • reading for ambient temperature
    Minimum Focus Distance
    • 15 cm
    Temperature Range
    • DC Voltage: 0 – 400mV / 4V / 40V / 400V / 600V DC Accuracy: ± 0.8%. AC Voltage: 0 – 4V / 40V / 400V / 600V AC Accuracy: ± 1.0%.
    Infrared Image Resolution
    • 256×192 pixels pixels
    Infrared Spectral Range
    • 10
    Image File Formats
    • Standard
    Color
    • Blue, Black
    Other Features
    • 9999 Counts Backlit Large LCD Dual Display. Shows Voltage/Frequency or Current/Frequency or DC Voltage/DC Current or DC Power/DC Current on the same screen. Solar Panel Polarity Indication: Audible & Visual alarm when less than 10V DC. Low Pass Filter. AC Inrush Current & Peak Value (PEAK) measurement. True RMS measurements. Jaw Opening: 35mm. Overload Protection: 2500V DC/1500V AC; 1000A AC/DC., TRMS AC Voltage: 0-999.9V/1500V, Accuracy: ±(1.0%+5). DC Voltage: 0-999.9mV/999.9V/2500V, Accuracy: ±(1.0%+5). TRMS AC Current: 0-999.9A, Accuracy: ±(2.0%+5) (40Hz~100Hz); ±(2.5%+5) (100Hz~1000Hz). DC Current: 0-999.9A, Accuracy: ±(2.0%+5). Flex Current: 0-30.00A/300.0/3000A (Flex Clamp Sensor available at extra cost), Accuracy: ±(3.0%+5).
    Net Quantity
    • 1
    Warranty
    Warranty Summary
    • NA
