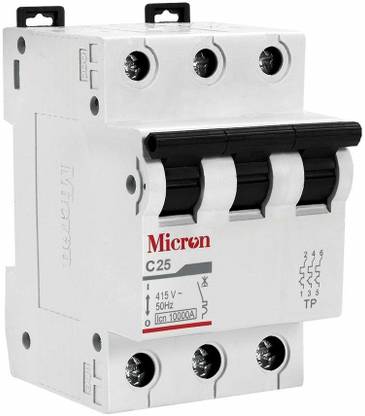

    Micron MCB 25A Triple Pole (Tp) - 'C' Curve 0713X11UVD6 MCB

    Micron MCB 25A Triple Pole (Tp) - 'C' Curve 0713X11UVD6 MCB  (3)

    Price: Not Available
    Currently Unavailable
    Warranty
    1 Year Warranty
    Highlights
    • 1 Year Warranty
    • Shock Proof
    • Energy saving
    • Strong Impact
    Description
    TECHNICAL INFORMATION Standard conformity - IS/IEC 60898-1:2002 Rated Current (In) - 6,10,16,20,25,32,40,63 AMP Rated Breaking Capacity - 10000A (10 kA) Rated Voltage (Un) - 415V AC Rated Frequency - 50 Hz Dielectric Strength - 2000 V for 1 Minute Rated Insulation Voltage (Ui) - 660 V Rated Impulse Voltage (Uimp) - 6 kV Energy Limiting Class - Class 3 Ambient Temperature(?C ) - -5? to 55? Degree of Protection - IP20 Tripping Mechanism - Thermal and Magnetic Type Mounting - Snap on DIN rail at (35mm x 7.5mm) Connecting Terminals - 25mm²
    Read More
    Specifications
    In The Box
    Items Included
    • 1 MICRON MCB 25A Triple Pole (TP)
    General
    Brand
    • Micron
    Model Number
    • 0713X11UVD6
    Model Name
    • MCB 25A Triple Pole (Tp) - 'C' Curve
    Current Rating Range
    • 25 A
    Number of Poles
    • 3
    Curve Characteristics
    • 'C' Curve
    Mounting Type
    • Rail
    DIN Rail Mount Type
    • 35 mm
    Additional Features
    Key Features
    • Protection against Over Load & Short Circuit., Environment friendly, meets the ROHS compliance as defined by the European Standard., Shock Proof: Finger and Hand touch safe.All moulded parts made from fire resistance engineering plastic ensures protection against Heating and Strong impact., Watt Loss value are much lower than the specific values of IS/IEC Consumes less power, thus cost effective and energy saving., A quick make & Break trip free mechanism.Bi-connect terminals at both sides giving a choice of using either a busbar or a cable to make the connection., Tested from ERDA in accordance with IS/IEC 60898-1 and ISI marked.CE marking fulfils the requirement of Global Standard., Better Arc Quenching values & Cooling system which ensure enhanced shot circuit performance.
    Warranty
    Warranty Summary
    • 1 Year Warranty
    Covered in Warranty
    • Manufacturing Defects
    Not Covered in Warranty
    • Defects other than Manufacturing Defect
    Warranty Service Type
    • 1 Year Warranty on Manufacturing Defect
