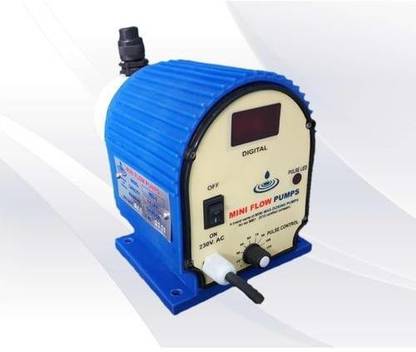

Mini flow Dosing pump 6 LPH Diaphragm Water Pump  (1 hp)

CONSTRUCTION MATERIAL ELECTRICAL SPECIFICATION BODY - PP GLASS FILLED SUPPLY VOLTAGE - 230VAC 50Hz (+OR-20%) HEAD - PP PLASTIC PIPING - 6/8mm HOUSING - MILD STEEL MAX. FLOW RATE 4/6/10/15/20/25 LPH WITH OPEN TANK DIAPHRAGM - P.T.F.E EMPTY FLUID SENSE - 5V DC FOR MAGNETIC SENSOR NRV BALL - P.T.F.E P.C.B GLASS EPOXY NON RETURN - PP VALVE FLOW RATE WITH 4KG.CM2 - 0-6 LPH(LITER PER HOUR) SUCTION & DISCHARGE - PP TUBING 1 MINUTE PULSE = 135 PULSE 1 HOUR = 8100 PULSE 1 PULSE = 0.74 ML FLUID TRANSFER DETAILED PULSE 1 MINUTE/ ML 1 HOUR/ML 7 5.18 310.00 15 11.25 675.00 30 22.22 1333.20 45 33.33 1999.80 60 44.40 2664.00 75 55.50 3330.00 90 66.60 3996.00 105 77.70 4662.00 120 88.80 5328.00 135 99.99 6000.00 (5% +/-)
