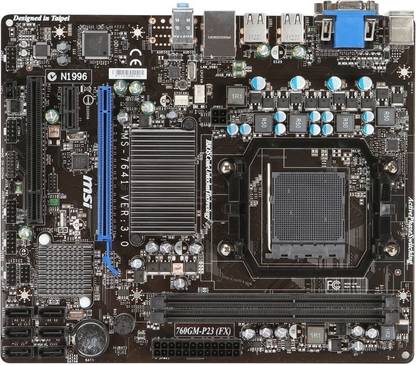

MSI 760GM-P23 (FX) Motherboard

Price: Not Available

Currently Unavailable

3 Years WarrantyKnow More

Highlights

AMD 760G
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, User Manual

General

Brand	MSI
Model ID	760GM-P23 (FX)

Essentials

Form Factor	Micro-ATX
Socket Type	AM3+
Compatible Processors	AMD Athlon II X4, AMD Phenom II X4, AMD Athlon II X2, AMD FX-Series, AMD Opteron, AMD Athlon II X3, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X6, AMD Athlon II, AMD Sempron
Chipset	AMD 760G, AMD SB710
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	800 MHz, 1333 MHz, 1066 MHz
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	AMD SB710
RAID Controller	AMD SB710
RAID Configurations	0, 1, 10, JBOD

Audio

Audio Codec	Realtek ALC887
Audio Channels	7.1
Audio Features	Compliant with Azalia 1.0 Spec, Audio with Jack Sensing

Connectivity

Ethernet Controller	Realtek RTL8111E
Ethernet Features	10/100/1000 Mb/s

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1
PCIe x16 Slots, Generation	2, 1

Internal I/o Headers

SATA 3 Gb/s Headers	6
USB 2.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x ATX 4-pin 12 V CPU Power Connector, 1 x Clear CMOS Jumper, 1 x Chassis Intrusion Switch Connector, 1 x SPDIF-out Connector

Back Panel Ports

USB 2.0 Ports, Controller	6
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

Overclocking	Auto Overclocking Processor, Auto Detect Overclocking Settings of CPU and Memory, OC Genie
Support CDs	MSI Live Update 5
OS Support	Vista, Windows: 98 SE, XP, 7, 8
Features	Super Charger, Winki 3, Solid Capacitors on PWM, Compliance with PCI-Express Bus Specification v1.0a, HyperTransport 3.0 Supporting Speed Upto 5200 MT/s, 6 x Mounting Holes
Advanced Technologies	Active Phase Switching Technology, Unlock CPU Core Technology
Advanced Features	M-Flash

Limitations

Only Front Red USB Ports Support Charger Function After System Off

Dimensions

205 x 244 mm

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Warranty

Ratings & Reviews

4.4

★

15 Ratings &

3 Reviews

5★
4★
3★
2★
1★

Best features for the price

I bought this MBD last month and have been using it till now without any issues what so ever.
Windows 8.1 starts instantly I mean instantly. I just switch on the pc and in 15 seconds or so OS boots ans i can see login screen.Really amazing.

I bought this MBD for my HTPC and coupled it athlon x2. I wanted to use DD Live and DTS Connect so I bought Creative SB0770 from ebay usa.

I am really happy with this MOBO. It offers best features for the price. like gigabit ethernet and best hyper tran...

Ramesh Babu Venugopal

Feb, 2014

Permalink

Report Abuse

Good motherboard

Coupled it with AMD Sempron 145 and Gskill 2gb Ram, WD 500gb HDD all bought from Flipkart.
Comes with 3 yr warranty!

Installed Win 8.1 and it's running like butter!!

Thank you Flipkart for delivering it before the promised date.

Sayam Roy

Certified Buyer, Bhubaneswar

May, 2014

Permalink

Report Abuse

Ridiculous

I bought this motherboard with the processor FX-4300, and the first time over it crashed and I had to get both the processor and motherboard replaced. Flipkart provided hassle free replacement. Good job there. The processor and Motherboard I have now seem to be malfunctioning again! They corrupt the windows in 2-3 runs, and crash showing the Blue Screen of Death. I had to get all the parts checked by a technician which btw costed me a good deal of money only to find out the motherboard was de...
