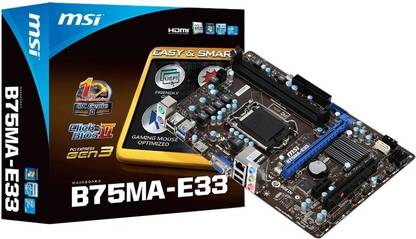

MSI B75MA-E33 LGA 1155Socket Micro-ATX Intel B75 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Please Call 1800 103 6262 (Toll Free) Mon to Fri (10 AM to 5 PM)Know More

Highlights

Intel B75
Data Rate DDR3
Maximum RAM Capacity 16 GB
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, Sata Cables, Rear I/O Panel and Support CD

General

Brand	MSI
Model ID	B75MA-E33

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Core i3 Processor, Intel Celeron Processor, Intel 3rd Generation Core i7 Processor, Intel 3rd Generation Core i5 Processor, Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor
FSB	100 MHz
Chipset	Intel B75
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 GB DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz, 1600 MHz, 2000 MHz, 2200 MHz, 2400 MHz, 1800 MHz

Storage

SATA 3 Gb/s	Intel B75 Chipset
SATA 6 Gb/s	Intel B75 Chipset

Audio

Audio Codec	Realtek ALC887
Audio Channels	8
Audio Features	Jack Sensing, Compliant with Azalia 1.0 Spec, High Definition Audio

Connectivity

Ethernet Controller	Realtek 8111E
Ethernet Features	10/100/1000

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	1, 3

Internal I/o Headers

SATA 3 Gb/s Headers	3
SATA 6 Gb/s Headers	1
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Clear CMOS Jumper, 1 x Serial Port Connector, 1 x Chasis Intrusion Connector, 1 x 4-pin ATX 12V Power Connector, 1 x Clear CMOS Jumper, 1 x Parallel Port Connector

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	OC Genie II: Auto Overclock in One Second, 36% Boost in 3D Gaming Performance, No Neef for Complex BIOS Setting and Extra Equipment
Support CDs	Live Update 5, BIOS, Driver, VGA, Utility Update
OS Support	Windows XP and Above
BIOS	Mainboard BIOS Provides Plug and Play BIOS, Mainboard Provides a Desktop Management Interface(DMI) Function
Features	PCI Express Gen 3 Mainboard Brand, VGA Max Share Memory(MB): 1760, DirectX 11 Support, 6 Mounting Holes
Advanced Technologies	Live Update 5, MSI 3TB+ Infinity Technology
Advanced Features	Instant OC, M-Flash, All Solid Capacitors, Winki 3, OC Genie II, Intel Small Business Advantage

Dimensions

173 x 244 mm

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	Please Call 1800 103 6262 (Toll Free) Mon to Fri (10 AM to 5 PM)
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In
