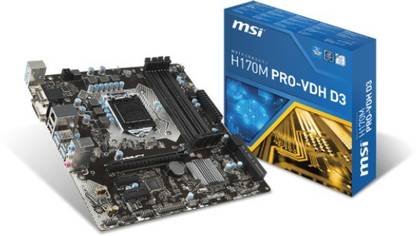

MSI H170M PRO-VDH D3 LGA1151Socket Micro-ATX Intel H170 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

3 Years manufacturing Warranty.Know More

Highlights

Suitable For Desktop
Intel H170
Data Rate DDR3
Maximum RAM Capacity 64 GB
Form Factor: Micro-ATX

Description

Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10. Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system’s performance. Variety of options to boost your game performance Next gen UEFI BIOS with award winning design High-resolution multi language scalable font Easy to use Advanced overclocking Featuring Network Genie for easy to use bandwidth optimizing Allows you to change applications' traffic priority Perfect for cloud computing and data syncing

Specifications

In The Box

Sales Package

Motherboard

General

Brand	MSI
Model ID	H170M PRO-VDH D3

Essentials

Form Factor	Micro-ATX
Socket Type	LGA1151
Chipset	Intel H170
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	64 GB DDR3 Dual Channel DIMM
ECC Support	ECC
Buffered Memory	No

Storage

RAID Configurations

RAID 0, RAID 1, RAID 5, RAID 10

Graphics

Integrated Graphics card

Only with iGPU-ready CPU

Audio

Audio Channels

Connectivity

Wireless and Bluetooth

1 x Realtek RTL8111H Gigabit LAN controller

Internal I/o Headers

USB 2.0 Headers

Other Connectors

- 1 x PS/2 keyboard port - 1 x PS/2 mouse port - 1 x HDMI™ port - 1 x DVI-D port - 1 x VGA port - 2 x USB 2.0 ports - 4 x USB 3.1 Gen1 ports - 1 x LAN (RJ45) port - 3 x audio jacks, - 1 x 24-pin ATX main power connector - 1 x 4-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) - 1 x 4-pin CPU fan connector - 2 x 4-pin system fan connector - 1 x Clear CMOS jumper - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Parallel port connector

Back Panel Ports

USB 2.0 Ports, Controller	2
HDMI Ports	1

General Features

Advanced Features

Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font

Warranty

Warranty Summary	3 Years manufacturing Warranty.
Covered in Warranty	Warranty of the product is limited to manufacturing defects only
Not Covered in Warranty	Warranty does not cover any physical damage.
Warranty Service Type	Carry In Warranty.
