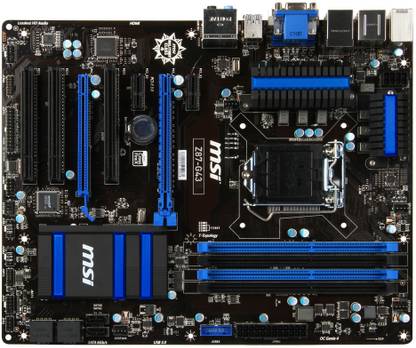

MSI Z87-G43 Gaming Motherboard

Price: Not Available

Currently Unavailable

3 Years Domestic WarrantyKnow More

Highlights

Intel Z87
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

Motherboard, Fan, Manual

General

Brand	MSI
Model ID	Z87-G43 Gaming

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel 4th Generation Core i5 Processor, Intel Xeon Processor, Intel 4th Generation Core i7 Processor
FSB	100 MHz
Chipset	Intel Z87
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	2000(OC) MHz, 2666(OC) MHz, 2600(OC) MHz, 1066 MHz, 2200(OC) MHz, 2133(OC) MHz, 2800(OC) MHz, 1600 MHz, 2400(OC) MHz, 1333 MHz, 3000(OC) MHz, 1866(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel Z87
RAID Controller	Intel Z87
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, 2-Way AMD CrossFire Technology

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	HD Audio

Connectivity

Ethernet Controller	Realtek 8111E
Ethernet Features	1 x Gigabit LAN Controller, 10/100/1000 LAN

Expansion Slots

PCI Slots	3
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1, 3

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Clear CMOS Jumper, 1 x Serial Port Connector, 1 x Parallel Port Connector, 2 x System Panel Connectors, 1 x Chassis Intrusion Connector

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	2, Intel Z87
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-D Port

General Features

Overclocking	OC Genie 4
Hardware Monitoring	CPU/System Temperature Detection, CPU/System Fan Speed Detection, CPU/System Fan Speed Control
Support CDs	Drivers
Bundled Software	MSI (Command Center, Super Charger, Super RAID, Live Update 5, Fast Boot), 7-ZIP, Intel Turbo Boost Monitor, Intel Extreme Tuning Utility, Norton Internet Security Solution, Trend Micro SafeSync
OS Support	Windows: 7, 8
BIOS	64 MB Flash, UEFI AMI BIOS, ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0, Multi-language
Features	VGA Port Supporting a Maximum Resolution of 1920 x 1200 (at 60Hz, 24bpp/ 2560 x 1600 at 60Hz, PCI_E4 Supports Upto PCIe 2.0 x4 Speed, VGA Maximum Share Memory: 1760 MB, 24bpp), DVI-D Port Supporting a Maximum Resolution of 1920 x 1200 (at 60Hz, HDMI Port Supporting a Maximum Resolution of 4096 x 2160 (at 24Hz, DirectX 11, 24bpp/ 1920 x 1080 at 60Hz, 9 Mounting Holes, 36bpp), NUVOTON NCT6779 I/O Controller Chip
Advanced Technologies	Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, Support Intel Rapid Storage Technology, AMD CrossFire Gaming Technology
Advanced Features	Supports Intel Extreme Memory Profile (XMP), MSI Military Class 4 Components, MSI Click BIOS 4, 4 K UHD Video Playback, Sound Blaster Cinema, 3 Display Outputs, Command Center, M-Flash, All Solid CAPs, Military Class Essentials

Dimensions

244 x 305 mm

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Warranty
