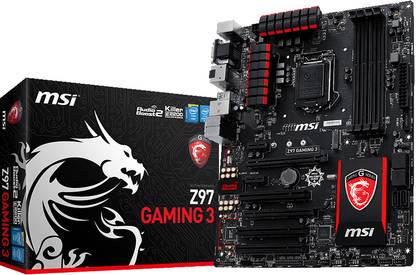

MSI Z97 Gaming 3 Motherboard

Price: Not Available

Currently Unavailable

3 Years MSI India Warranty and Free Transit Insurance.Know More

Highlights

Data Rate DDR3
Maximum RAM Capacity 32 GB
Form Factor: ATX

Specifications

In The Box

Sales Package

Motherboard, 2 x SATA3 Cables, I/O Panel Shield

General

Brand	MSI
Model ID	Z97 Gaming 3

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Core i7 Processor, Intel 5th Generation Core Processors, Intel Celeron Processors, Intel 4th Generation Core Processors, Intel Pentium Processors
FSB	100 MHz
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	2000 MHz, 1066 MHz, 2133 MHz, 3200 MHz, 2200 MHz, 3000 MHz, 1333 MHz, 2666 MHz, 2400 MHz, 2800 MHz, 2600 MHz, 3100 MHz, 1600 MHz, 1866 MHz, 3300 (OC) MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 6 Gb/s	Intel Z97 Express
RAID Controller	Intel Z97 Express
RAID Configurations	0, 1, 5, 10

Graphics

Multi GPU Support

Yes, Supports 2-way AMD CrossFire Technology

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	Amazing Sound with Audio Boost 2, Powered By Creative Sound Blaster Cinema 2, USB Audio Power, HD Audio

Connectivity

Ethernet Controller	Killer E2205 Gigabit LAN
Ethernet Features	10/100/1000

Expansion Slots

PCI Slots	3
PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	1, 3, 2

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Clear CMOS Jumper, 2 x System Panel Connectors, 1 x Parallel Port Connector, 1 x Chassis Intrusion Connector, 1 x Direct Audio Power Connector, 1 x Serial Port Connector, 1 x Audio Power Switch, USB 3.0 Connector (Supports Additional 2 USB 3.0 Ports), USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports)

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-D Port

General Features

Overclocking	OC Genie 4: Overclock in 1 Second
Bundled Software	Live Update 6, Command Center, Unlimted RAM Disk
OS Support	8.1, 8, Windows: 7
BIOS	Click BIOS 4: Easily Fine-tune Your System
Features	2560 x 1600 @ 60 Hz, 3840 x 2160 @ 60 Hz, DirectX 11, 1 x Display Port (Supporting a Maximum Resolution of 4096 x 2304 @ 24 Hz, 1920 x 1200 60 Hz), Supports Intel Extreme Memory Profile (XMP), 9 Mounting Holes, Dimensions: 305 x 244 mm, VGA Max Share Memory: 1760 MB
Advanced Technologies	Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features	XSplit Gamecaster: Show off Your Skills and Achievements, Guard-Pro: Improved Protection and Power Efficiency, Gaming App: Boost Your Frame Rate, Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices, Military Class 4 Components

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	3 Years MSI India Warranty and Free Transit Insurance.
