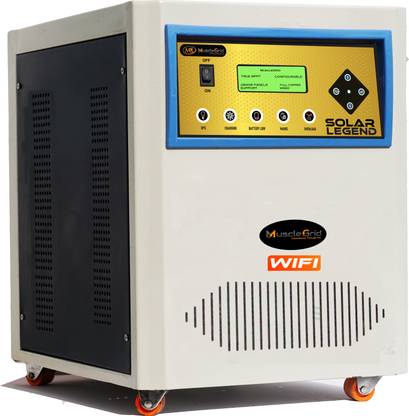

MuscleGrid India SOLAR SCI-BOT WIFI 3KVA (3000VA) LITHIUM SUPPORT 100AMPS TRUE MPPT 25.6V LIVE MONITORING [HIGHLY CONFIGURABLE] WW Alexa and Google SOLAR INVERTER Pure Sine Wave Inverter
Get notified when this item comes back in stock.

MuscleGrid India SOLAR SCI-BOT WIFI 3KVA (3000VA) LITHIUM SUPPORT 100AMPS TRUE MPPT 25.6V LIVE MONITORING [HIGHLY CONFIGURABLE] WW Alexa and Google SOLAR INVERTER Pure Sine Wave Inverter

Share

MuscleGrid India SOLAR SCI-BOT WIFI 3KVA (3000VA) LITHIUM SUPPORT 100AMPS TRUE MPPT 25.6V LIVE MONITORING [HIGHLY CONFIGURABLE] WW Alexa and Google SOLAR INVERTER Pure Sine Wave Inverter

3
6 Ratings & 3 Reviews
₹887/month
36 months EMI Plan with BOBCARD
₹25,227
82,990
69% off
i
Sold Out
This item is currently out of stock
Warranty
2 Years
Highlights
  • Backup Time: 8 hrs
Easy Payment Options
  • EMI starting from ₹887/month
  • Net banking & Credit/ Debit/ ATM card
View Details
Seller
MuscleGrid
3.4
  • 7 Days Replacement Policy
    ?
  • See other sellers
  • Description
    TRUE MPPT INVERTER WITH 2800 WATTS PANEL SUPPORT 24V / 2 batteries Supports Lithium Battery SMART IoT Technology, works with Alexa and Google MuscleGrid App Live time Load monitoring and IoT configurable. SOLAR CHARGING IS NOT DIRECT UNLIKE ALL OTHER INVERTERS. IT COMES THROUGH MPPT CHARGER AND THEN CONVERTED. HENCE MAXIMUM PANELS CAN BE SUPPORTED.
    Read More
    Specifications
    In The Box
    • MPPT Inverter, WOODEN BOX (BIG SIZE INVERTER), All Battery WIres, CLOUD CONNECT DEVICE
    General
    Brand
    • MuscleGrid India
    Model Number
    • SOLAR SCI-BOT WIFI 3KVA (3000VA) LITHIUM SUPPORT 100AMPS TRUE MPPT
    Battery Included
    • No
    Back Up Time
    • 8 hrs
    Load Options
    • 2400 WATTS, 1 HP MOTOR, 5 FANS
    Type
    • Pure Sine Wave Inverter
    Model Name
    • 25.6V LIVE MONITORING [HIGHLY CONFIGURABLE] WW Alexa and Google SOLAR INVERTER
    Mode Type
    • WIFI MPPT Solar Inverter
    Material
    • Hard Metal
    Fixture Type
    • Flat Mount
    Technology Used
    • True MPPT, WIFI MONITORING, IoT, MuscleGrid Cloud
    Solar Power Compatible
    • Yes
    Switch Type
    • MOSFET MPPT, IGBT
    Output Features
    Efficiency
    • 95 %
    Output Voltage
    • 240V
    Output Frequency
    • 50
    Overload
    • 2.4KW
    AC Output Types
    • Dual Protection
    Output Power
    • 2400 W
    Change Over Time
    • 5 ms
    Surge Rating
    • 3000 VA
    Overload Rating
    • 90%
    Other Output Features
    • Set Hi-Low Voltage Cutoff, Custom set Example- When temperature rises 35c Turn off Inverter Grid, When weather is cloudy, Turn On Inverter Grid
    Input Features
    Input Voltage
    • 90
    Input Frequency
    • 50
    Low Cut Input Voltage
    • 10.5v
    Low Cut Recovery Input Voltage
    • 11.5v
    High Cut Input Voltage
    • 15.5v
    High Cut Recovery Input Voltage
    • 15v
    Other Input Features
    • 5 STAGE BATTERY CHARGING (Softstart, Boost, Absorbtion, Float, Equalise)
    Battery Features
    Battery Type
    • Lithium, SMF and Tubular
    Number of Batteries
    • 2
    Battery Voltage
    • 24V
    Battery Charging Current
    • 100A
    Replacement Battery
    • Yes
    Compatible Battery Types
    • Tubular, SMF, Lithium
    Compatible Battery Make
    • All Renowned brands
    Environmental Features
    Storage Temperature
    • Set in App
    Operating Temperature
    • Set in App
    Other Environmental Features
    • Change modes according to weather, Daily Timer, Automation
    Convenience Features
    Display Type
    • Digital 4 Line Big display
    Display Indicator Functions
    • Battery Percentage, Load Sharing
    Protection Against
    • High Low voltage
    Cooling System
    • Cooling Jet
    Other Convenience Features
    • Live time load monitoring, Electricity units calculator as per circle rate, Set grid off as per presets etc.
    Dimensions
    Width
    • 50 cm
    Height
    • 30 cm
    Depth
    • 30 cm
    Weight
    • 35 kg
    Warranty
    Warranty Summary
    • 2 Years
    Service Type
    • Free repair
    Covered in Warranty
    • All manufacturing defects
    Not Covered in Warranty
    • Overload Burns, Physical Damage
