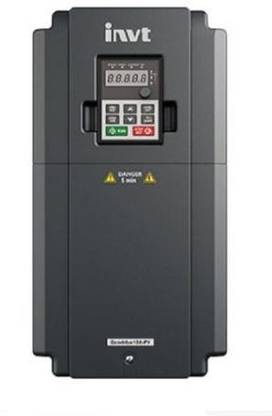

NextTech GD100-5R5G-4-PV 7.5HP 5.5(kW) Solar pump inverter controller Solar Water Pump

Next Tech GD100 Invt 7.5HP (5.5 kW) Solar Inverter and Converter Solar Water Pump Drive is multifunctional, perfect for all types (monoblock, submersibe and open well pumps) of three phase of solar motor and AC motor. Solar PV module Connection of two 335*12 and 335*12 panel should be connected in series connection and that series connection should be connected in one string connection. The outcome connections of solar panel of two series connection of two +ve and two -ve should be connected first in +ve and -ve connection than after that connection should be connected in drive +ve and -ve connection. This drive will operated in 3HP, 5HP and 7.5HP solar pump but all should be in 3 phase. NOTE:- +ve and -ve wire should be tight properly. Drive output in 3PH terminal U V W motor output. If wire wrong connection than motor will run anticlockwise, in this case any wire from U V W interchanged. Customer Support please contact *9*4*7*9*7*7*9*2*8*8*
