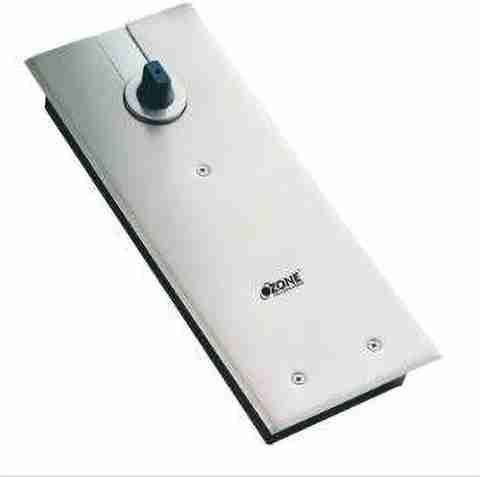

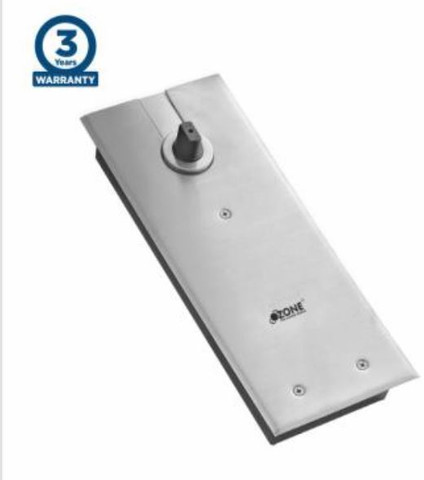

ozone hardware Floor Mounted Door Closer

Price: Not Available

Currently Unavailable

Warranty

3 years warranty

Description

Cam Action Floor Spring with Closing Force EN 4 Maximum door weight 150Kgs. Maximum door width 1100mm Closing speed : 130-10° Final closing speed : 10-0° Hold Open (standard): 90° hold open Weight of floor spring approx : 6kg Installation dimension: Length-306mm, Width-108mm, Height-40mm Tested to : 5,00,000 cycles Tested as per : EN 1154 Also available with inter changeable spindles (for export) CE certified : Yes 3 8 4 1 1 3 Fire Rated

Specifications

In The Box

150 KG FLOOR SPRING ( FS-9400)

General

Brand	ozone hardware
Model Number	FS-9400 STD SSS
Shade	Silver
Type	Automatic
Material	Stainless Steel, steel
Fixture Types	Floor Mounted
Color	Silver
Model Name	FS-9400 STD SSS
Suitable For	Glass Door, Wooden Door, Metal and aluminum Door
Installation_type	Manual help with fabricators
Net Quantity	1

Performance Features

Maximum Door Width	1200 mm
Maximum Door Weight	150 kg
Leakage Proof	Yes
Stand Open Arm	Yes
Hold Open Angle	90 degree
Angle of Opening	130 degree
Delayed Action	Yes
Adjustable Closing Speed	Yes
Adjustable Latching Speed	Yes

Warranty

Warranty Summary	3 years warranty
Warranty Service Type	NA
