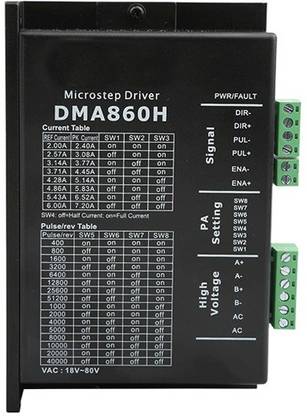

Robodo DMA860H Digital Stepper Motor Driver with micro stepping 24 to 80V 7.2A Motor Control Electronic Hobby Kit

Configuration: Description: - MA860H stepping motor driver,mainly for 86/110 2-Phase Stepping Motor,16 Micro step,max stpe is 51200Pulse/rev,Working current is range from 2.4A to 7.2A. The MA860H is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives on the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors. Features Extremely cost-effective Good high speed performance Supply voltage up to 80VAC or +110VDC Output current up to 7.2A Self-adjustment technology Pure-sinusoidal current control technology Pulse input frequency up to 300 KHz TTL compatible and optically isolated input Automatic idle-current reduction 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev Suitable for 2-phase and 4-phase motors Support PUL/DIR and CW/CCW modes Short-voltage, over-voltage, over-current and short-cicuit protection Parameter: ParametER DMA860H
