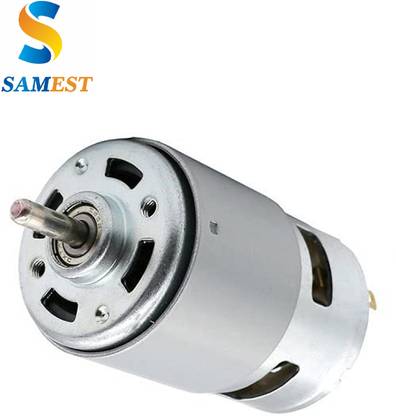

samest 775 dc motor SF0032 Motor Control Electronic Hobby Kit

samest 775 dc motor SF0032 Motor Control Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • Material: Copper
  • Weight: 0.1
Description
Samest-:DC 12V 24V round shaft 775 electric motors, with both side bush, Mounting Screw Hole Diameter: 4mm, Distance between Screw Holes: 30mm, Diameter of the Motor: 44mm Type: Micro DC Motor; Rated voltage: 12V 2 Amp, No Load Speed: 7000RPM, 12V 5Amp No-Load Speed: 10000 RPM; Rated voltage: 24V No-Load Speed: 19800 RPM Shaft Diameter: 5 mm; Shaft length: 17 mm Length of the Motor (Body): 67mm, Motor Diameter : 45mm, Color : Silver Tone With copper wire production, durable for using. Easy to wire and install. Durable construction for long-lasting performance. Wide applied to electric tools, electric fans, electric cleaners, etc. Small size but large torque Note: The motor starting current needs to be 10A, Net Weight: 315gm, Package Contains: 1 x Motor
Read More
Specifications
In The Box
  • 1 Motor
General
Brand
  • samest
Model Number
  • 775 dc motor SF0032
Skillset
  • Motor Skills
Type
  • Motor Control
ROHS Complaint
  • No
Material
  • Copper
Age Group
  • 16+ Years
Dimensions
Width
  • 4 cm
Height
  • 4 cm
Weight
  • 0.1
Power Features
Battery Type
  • DC
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Power Consumption
  • DC
Other Power Features
  • NA
